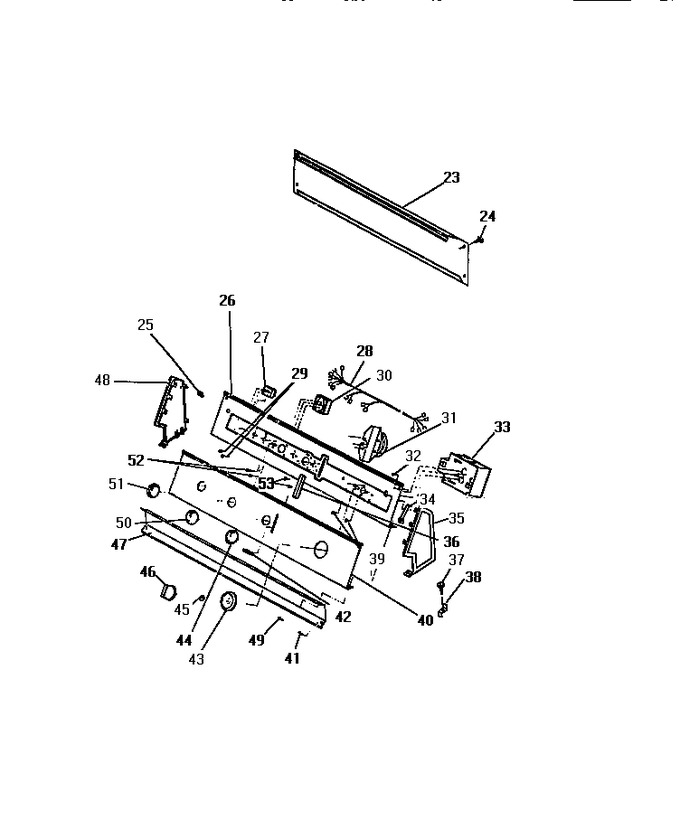

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	8010781		Panel-console Rear		Appelez-nous	-
24	8010782		Screws (4)		Appelez-nous	-
25	8014350		Nuts (8)		Appelez-nous	-
26	8015865		Bracket, Controls Mounting		Appelez-nous	-
27	801340		Switch, Temperature Selector		Appelez-nous	-
28	8015884		Harness, Wiring		Appelez-nous	-
29	8002284		Screws (2)		Appelez-nous	-
31	8014348		Switch Water Level		Appelez-nous	-
32	8010789		Screws (2)		Appelez-nous	-
34	8014349		Strap-ground		Appelez-nous	-
35	8010787		End Cap R.h.		Appelez-nous	-
37	8001689		Screw		Appelez-nous	-
38	8002341		Terminal		Appelez-nous	-
39	8006636		Screws (2)		Appelez-nous	-
41	8011318		Screws (2)		Appelez-nous	-
43	8015498		Indicator, Timer Dial		Appelez-nous	-
44	8014340		Knob-water Level Switch		Appelez-nous	-
45	8015493		Spacer		Appelez-nous	-
46	8014337		Knob Timer		Appelez-nous	-
47	8015897		Trim, Lower		Appelez-nous	-
48	8010783		End Cap L.h.		Appelez-nous	-
49	8010782		Screws (3)		Appelez-nous	-
50	8014340		Knob-speed Switch		Appelez-nous	-
51	8014340		Knob-water Temperature Switch		Appelez-nous	-
52	8002284		Screws (2)		Appelez-nous	-
53	8002339		Escutcheon		Appelez-nous	-
*93801	8016754		Wire, Ground		Appelez-nous	-
27A	8015886		Switch, Temperature Selector		Appelez-nous	-
33C	3015658		Timer		Appelez-nous	-
40B	8015889		Escutcheon		Appelez-nous	-
