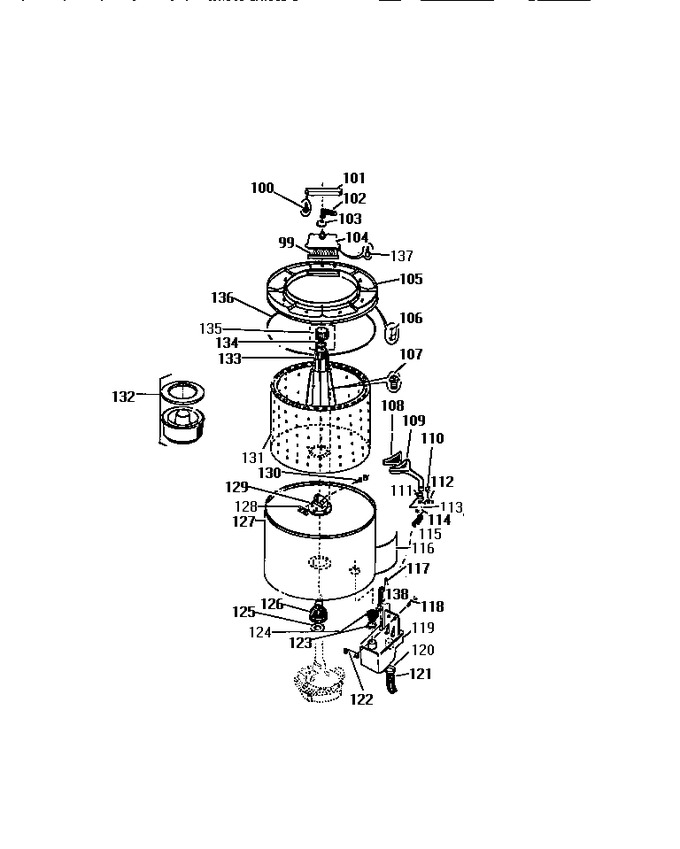

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 99 | 8002435 | Filter-lint |
|
- | |||||
| 102 | 8002353 | Hose |
|
- | |||||
| 103 | 8015517 | Clamp |
|
- | |||||
| 104 | 8015911 | Housing, Lint |
|
- | |||||
| 105 | 8011314 | Top, Sub |
|
$ 10.28 | |||||
| 106 | 8002429 | Clips (10) |
|
- | |||||
| 107 | 8015509 | Screws (5) |
|
- | |||||
| 116 | 8011275 | Shield, Motor |
|
- | |||||
| 117 | 8011257 | Hose, Pressure |
|
- | |||||
| 118 | 8011280 | Screws (2) |
|
- | |||||
| 119 | 8002366 | Trap, Drain |
|
- | |||||
| 120 | 8014913 | Clamp |
|
- | |||||
| 121 | 8002364 | Hose (pump To Trap) |
|
- | |||||
| 122 | 8011303 | Nut |
|
- | |||||
| 123 | 8002367 | Clamp |
|
- | |||||
| 124 | 8006567 | Grommet |
|
- | |||||
| 125 | 8002401 | Washer-thrust |
|
- | |||||
| 126 | 8011284 | Bearing-tub Support |
|
- | |||||
| 127 | 8002371 | Tub-outer |
|
- | |||||
| 128 | 8014907 | Plate, Lock |
|
- | |||||
| 129 | 8014908 | Support, Trunnion |
|
- | |||||
| 130 | 8014909 | Screws (2) |
|
- | |||||
| 131 | 8015495 | Basket, Inner Tub |
|
- | |||||
| 133 | 8015885 | Agitator |
|
- | |||||
| 134 | 8002427 | Washer |
|
- | |||||
| 135 | 8015868 | Cap, Agitator (includes Washer) |
|
- | |||||
| 136 | 8002430 | Seal |
|
- | |||||
| 137 | 8002432 | Screws (5) |
|
- |
