SELECT A DIAGRAM

03 - Console & Controls


04 - Console & Controls


05 - Body


06 - Tub

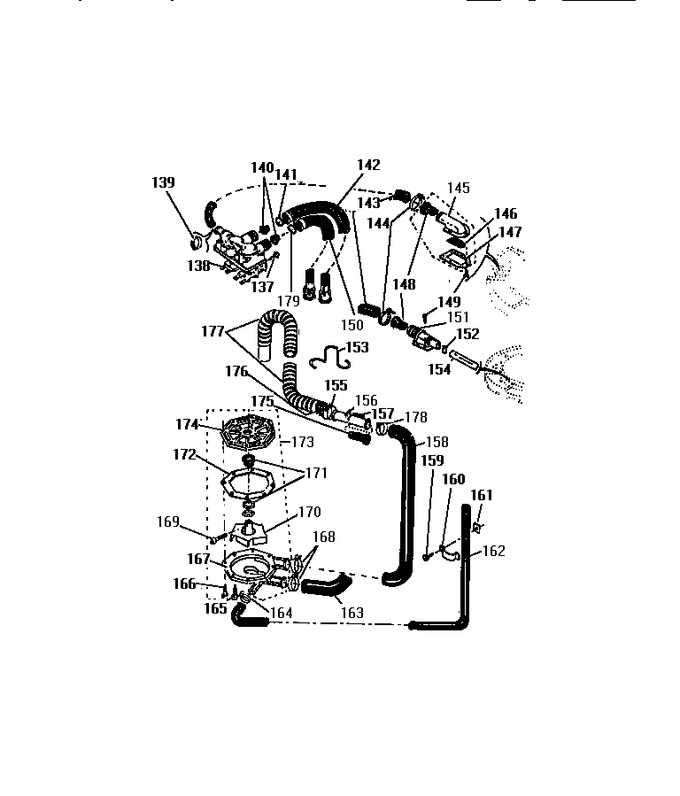

07 - Pump, Hoses,valves, Hoses


08 - Motor, Pulleys


09 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
137	8001638		Screws (2)		Appelez-nous	-
138	8015532		Valve, Water (complete)		Appelez-nous	-
139	8006572		Clamp		Appelez-nous	-
140	8002439		Screen (2)		Appelez-nous	-
141	8015499		Washers (2)		Appelez-nous	-
142	6561384		Hose, Inlet (cold & Hot)		Appelez-nous	-
143	8008471		Hose, Inlet		Appelez-nous	-
144	8007731		Clamp		Appelez-nous	-
145	8006569		Nozzle, Water Inlet Assembly		Appelez-nous	-
146	8006682		Screen		Appelez-nous	-
147	8006683		Gasket		Appelez-nous	-
148	8011283		Valve, Check (2)		Appelez-nous	-
149	8016753		Screws (3)		Appelez-nous	-
150	6561384		Hose, Inlet (hot)		Appelez-nous	-
153	8002362		Retainer		Appelez-nous	-
155	8002361		Clamp		Appelez-nous	-
156	8015078		Coupling		Appelez-nous	-
157	8002359		Screw		Appelez-nous	-
158	8015531		Hose, Pump To Coupling		Appelez-nous	-
159	8015500		Screw		Appelez-nous	-
160	8002356		Clamp		Appelez-nous	-
161	8002355		Nut		Appelez-nous	-
162	8002353		Hose-pump To Lint Filter		Appelez-nous	-
163	8002364		Hose-trap To Pump		Appelez-nous	-
164	8015517		Clamp		Appelez-nous	-
165	8002389		Screws (4)		Appelez-nous	-
166	8002390		Screws (4)		Appelez-nous	-
168	8014914		Clamps (2)		Appelez-nous	-
169	8002392		Screw, Set		Appelez-nous	-
170	8950055		Kit, Impeller (a)		Appelez-nous	-
171	8950093		Kit, Seal		Appelez-nous	-
172	8002396		Gasket		Appelez-nous	-
173	8015497		Pump, Complete		Appelez-nous	-
174	8002397		Housing, Pump Cover		Appelez-nous	-
175	8014555		Valve, Check		Appelez-nous	-
176	8011277		Bushing		Appelez-nous	-
177	8006675		Hose-drain Includes Bushing		Appelez-nous	-
178	8004057		Clamp		Appelez-nous	-
179	8015499		Washers		Appelez-nous	-
167A	8002391		Housing, Lower Pump		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
