SELECT A DIAGRAM

03 - Console


04 - Cabinet, Base, Top, Lid


05 - Outer Tub, Inner Tub, Sub Top, Agit


06 - Pump, Hoses, Water Valve


07 - Motor, Pulleys, Belt, Springs


08 - Mechanism


09 - Accessories & Functional Parts

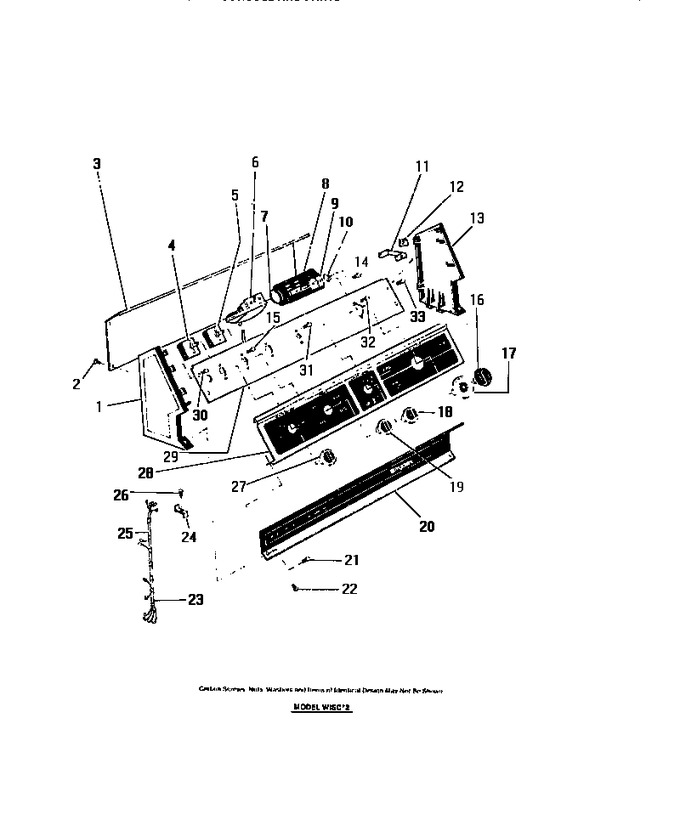

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8010783		End Cap L.h.		Appelez-nous	-
2	8010782		Screws (3)		Appelez-nous	-
3	8010781		Panel-console Rear		Appelez-nous	-
4	8008463		Switch-water Temperature Selector		Appelez-nous	-
5	8014351		Switch-speed Selector		Appelez-nous	-
6	8010860		Switch Water Level		Appelez-nous	-
7	8007721		Motor Timer		Appelez-nous	-
8	8014347		Timer-washer		Appelez-nous	-
9	8008459		Bracket		Appelez-nous	-
10	8002349		Spacer		Appelez-nous	-
11	8014349		Strap-ground		Appelez-nous	-
12	8014350		Clips (8)		Appelez-nous	-
13	8010787		End Cap R.h.		Appelez-nous	-
14	8002345		Screws (2)		Appelez-nous	-
15	8002284		Screws (2)		Appelez-nous	-
16	8014337		Knob Timer		Appelez-nous	-
17	8014338		Indicator Timer Dial		Appelez-nous	-
18	8014340		Knob-water Level Switch		Appelez-nous	-
19	8014340		Knob-speed Switch		Appelez-nous	-
20	8014343		Trim-lower		Appelez-nous	-
21	8011318		Screws (2)		Appelez-nous	-
22	8010782		Screws (3)		Appelez-nous	-
23	8014353		Harness-cabinet		Appelez-nous	-
24	8002341		Terminal		Appelez-nous	-
25	8002342		Harness Water Level		Appelez-nous	-
26	8001689		Screw		Appelez-nous	-
27	8014340		Knob-water Temperature Switch		Appelez-nous	-
28	8014342		Escutcheon		Appelez-nous	-
29	8014339		Bracket-control Mounting		Appelez-nous	-
30	8002284		Screws (2)		Appelez-nous	-
31	8002339		Screws (2)		Appelez-nous	-
32	8002339		Screws (2)		Appelez-nous	-
33	8010789		Screws (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
