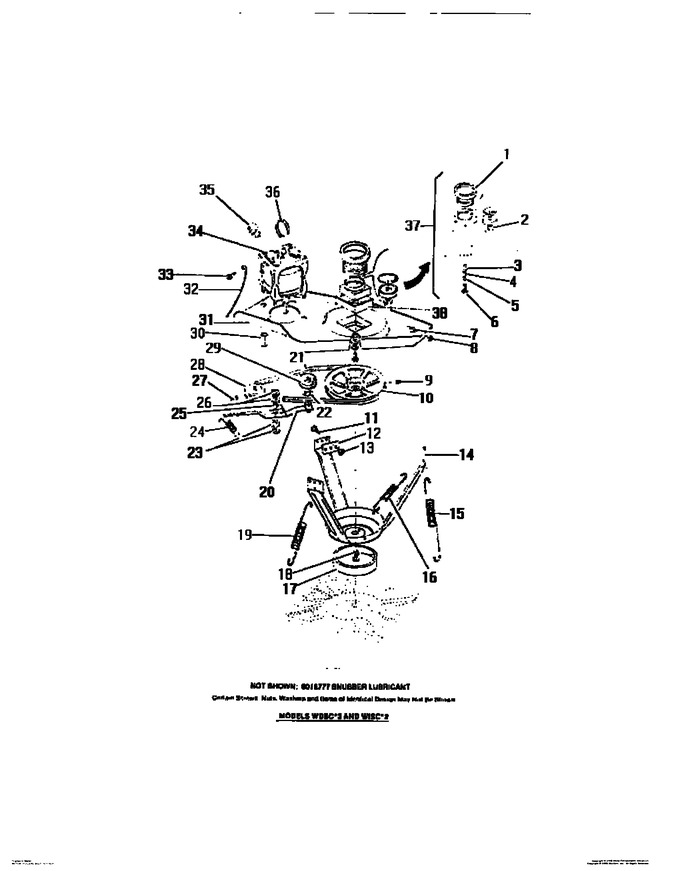

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8011269		Sleeve		Appelez-nous	-
2	8015536		Retainer Ring		Appelez-nous	-
3	8002466		Sleeve (2)		Appelez-nous	-
4	8002467		Spacers (2)		Appelez-nous	-
5	8002468		Washers (2)		Appelez-nous	-
6	8006579		Screws (2)		Appelez-nous	-
7	8002471		Screws (3)		Appelez-nous	-
8	8002470		Nuts (3)		Appelez-nous	-
9	8002461		Screw (set)		Appelez-nous	-
10	8011288		Pulley		Appelez-nous	-
11	8002378		Screws (6)		Appelez-nous	-
12	8002379		Plate (3)		Appelez-nous	-
13	8002377		Nuts (6)		Appelez-nous	-
14	8011310		Support		Appelez-nous	-
15	8011317		Spring-vertical (2) Long		Appelez-nous	-
16	8011311		Spring Horizontal (3)		Appelez-nous	-
17	8002385		Snubber Ring		Appelez-nous	-
18	8002382		Nut		Appelez-nous	-
19	8011261		Spring Vertical (short)		Appelez-nous	-
20	8004078		Arm-idler		Appelez-nous	-
21	8011289		Belt		Appelez-nous	-
22	8002840		Washer		Appelez-nous	-
23	8002457		Washer (2)		Appelez-nous	-
24	8002456		Spring-idler		Appelez-nous	-
25	8002454		Spacer		Appelez-nous	-
26	8002457		Washers (2)		Appelez-nous	-
27	8002453		Screw (set)		Appelez-nous	-
28	8011285		Pulley-motor		Appelez-nous	-
29	8011271		Pulley		Appelez-nous	-
30	8014925		Spacers (3)		Appelez-nous	-
31	8002472		Plate-support		Appelez-nous	-
32	8011250		Wire-ground		Appelez-nous	-
33	8001676		Screw		Appelez-nous	-
34	8010862		Motor Washer Drive, Two Speed Ge		Appelez-nous	-
35	8010865		Switch Motor Start, Fits Emerson Motor		Appelez-nous	-
35	8010864		Switch Motor Start, Fits Ge Motor		Appelez-nous	-
36	8002819		Retainer		Appelez-nous	-
37	8950058		Bearing Kit		Appelez-nous	-
38	8002473		Cushion		Appelez-nous	-
*14182	8015777		Snubber Lubricant		Appelez-nous	-
