SELECT A DIAGRAM

03 - Console


04 - Cabinet, Base, Top, Lid


05 - Outer Tub, Inner Tub, Sub Top, Agit


06 - Pump, Hoses, Water Valve


07 - Motor, Pulleys, Belt, Springs


08 - Mechanism


09 - Accessories & Functional Parts

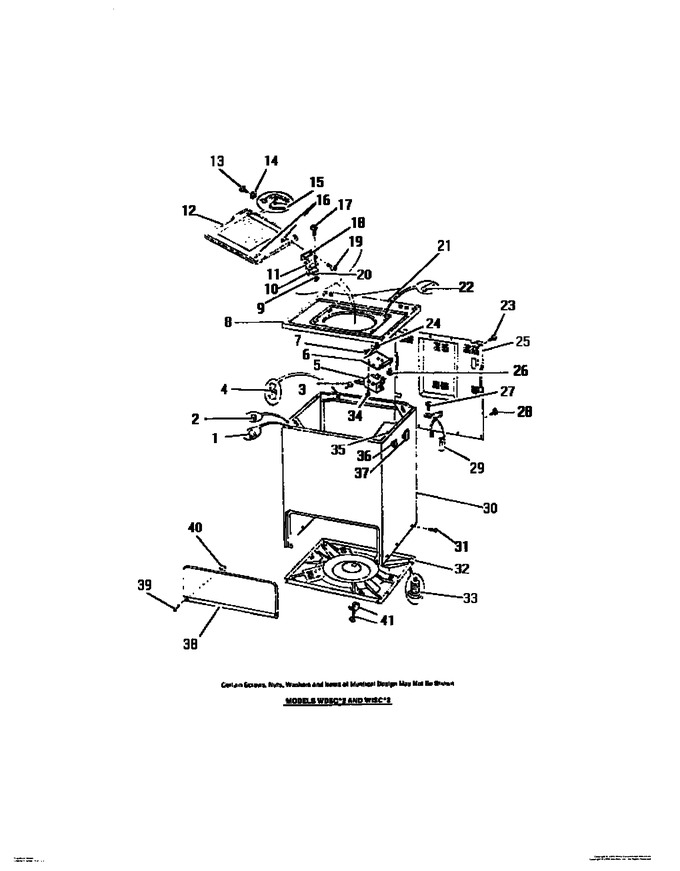

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8001597		Clip-spring (2)		Appelez-nous	-
2	8001596		Bumpers (4)		Appelez-nous	-
3	8011276		Screws (2)		Appelez-nous	-
4	8002384		Hinges-top (2)		Appelez-nous	-
5	8002419		Lock-lid		Appelez-nous	-
6	8011294		Bracket		Appelez-nous	-
7	8002416		Screw		Appelez-nous	-
8	8011297		Almond		Appelez-nous	-
9	8002415		Nuts (4)		Appelez-nous	-
10	8002413		Gaskets (2)		Appelez-nous	-
11	8002412		Hinges		Appelez-nous	-
12	8015525		Lid Washer, Almond		Appelez-nous	-
13	8002407		Screws (2)		Appelez-nous	-
14	8002408		Washer (4)		Appelez-nous	-
15	8002409		Strike		Appelez-nous	-
16	8002400		Nuts (2)		Appelez-nous	-
17	8002416		Screws (4)		Appelez-nous	-
18	8002411		Gaskets (2)		Appelez-nous	-
19	8002416		Screws (4)		Appelez-nous	-
20	8002414		Washers (4)		Appelez-nous	-
21	8006557		Retainers (2)		Appelez-nous	-
22	8002417		Bumpers (2)		Appelez-nous	-
23	8001559		Screws (10)		Appelez-nous	-
24	8002422		Nut		Appelez-nous	-
25	8011286		Panel-back		Appelez-nous	-
26	8002420		Rivets (2)		Appelez-nous	-
27	8001638		Screw		Appelez-nous	-
28	8001559		Screws (2)		Appelez-nous	-
29	8011295		Cord-electrical Service		Appelez-nous	-
30	8011293		Shell Cabinet, Almond		Appelez-nous	-
31	8001613		Screws (6)		Appelez-nous	-
32	8011290		Base - Washer		Appelez-nous	-
33	8950088		Foot (4)		Appelez-nous	-
34	8010804		Screws (2)		Appelez-nous	-
35	8004657		Clips (2)		Appelez-nous	-
36	8011304		Clip Short		Appelez-nous	-
37	8011305		Clip Long		Appelez-nous	-
38	8011263		Panel-access, Almond		Appelez-nous	-
39	8001578		Screws (2)		Appelez-nous	-
40	8002388		Nuts (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
