SELECT A DIAGRAM

03 - Console


04 - Cabinet, Base, Top, Lid


05 - Outer Tub, Inner Tub, Sub Top, Agit


06 - Pump, Hoses, Water Valve


07 - Motor, Pulleys, Belt, Springs


08 - Mechanism

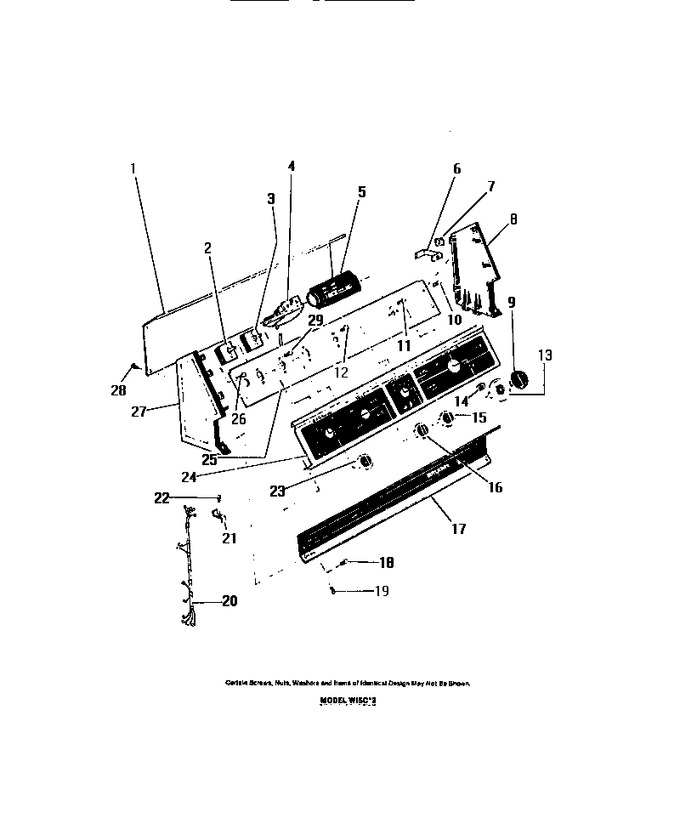

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8010781		Panel-console Rear		Appelez-nous	-
2	8008463		Switch-water Temperature Selector		Appelez-nous	-
3	8014351		Switch-speed Selector		Appelez-nous	-
4	8010860		Switch Water Level		Appelez-nous	-
5	8015504		Timer, Washer		Appelez-nous	-
6	8014349		Strap-ground		Appelez-nous	-
7	8014350		Clip (8)		Appelez-nous	-
8	8010787		End Cap R.h.		Appelez-nous	-
9	8014337		Knob Timer		Appelez-nous	-
10	8010789		Screw (2)		Appelez-nous	-
11	8006636		Screw (2)		Appelez-nous	-
12	8002339		Screw (2)		Appelez-nous	-
13	8015498		Indicator, Timer Dial		Appelez-nous	-
14	8015493		Spacer		Appelez-nous	-
15	8014340		Knob-water Level Switch		Appelez-nous	-
16	8014340		Knob-speed Switch		Appelez-nous	-
17	8014343		Trim-lower		Appelez-nous	-
18	8011318		Screw (2)		Appelez-nous	-
19	8010782		Screw (3)		Appelez-nous	-
20	8015511		Wiring Harness		Appelez-nous	-
21	8002341		Terminal		Appelez-nous	-
22	8001689		Screw		Appelez-nous	-
23	8014340		Knob-water Temperature Switch		Appelez-nous	-
24	8014342		Escutcheon		Appelez-nous	-
25	8014339		Bracket-control Mounting		Appelez-nous	-
26	8002284		Screw (2)		Appelez-nous	-
27	8010783		End Cap L.h.		Appelez-nous	-
28	8010782		Screw (4)		Appelez-nous	-
29	8002284		Screw (2)		Appelez-nous	-
