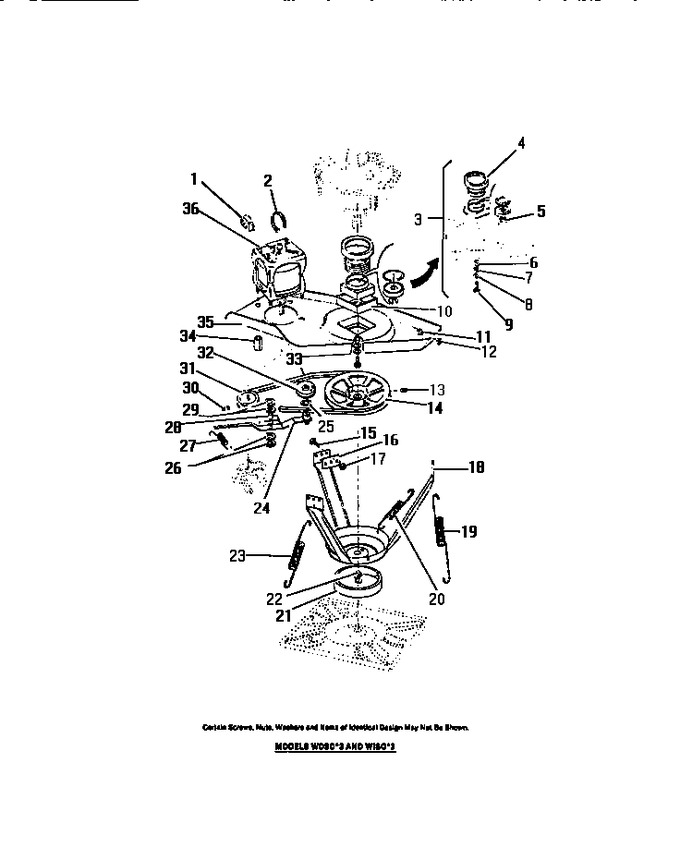

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8014888 | Switch, Motor Start |
|
- | |||||
| 2 | 8002819 | Retainer (2) |
|
- | |||||
| 3 | 8950058 | Bearing Kit |
|
- | |||||
| 4 | 8011269 | Sleeve |
|
- | |||||
| 5 | 8015536 | Ring, Snap |
|
- | |||||
| 6 | 8002466 | Sleeve (2) |
|
- | |||||
| 7 | 8002467 | Spacer (2) |
|
- | |||||
| 8 | 8002468 | Washer (2) |
|
- | |||||
| 9 | 8006579 | Screw (2) |
|
- | |||||
| 10 | 8002473 | Cushion |
|
- | |||||
| 11 | 8002471 | Screw (3) |
|
- | |||||
| 12 | 8002470 | Nut (3) |
|
- | |||||
| 13 | 8002461 | Screw (set) |
|
- | |||||
| 14 | 8014923 | Pulley |
|
- | |||||
| 15 | 8002378 | Screw (6) |
|
- | |||||
| 16 | 8002379 | Plate (3) |
|
- | |||||
| 17 | 8002377 | Nut (6) |
|
- | |||||
| 18 | 8011310 | Support |
|
- | |||||
| 19 | 8011317 | Spring, Vertical, Long (2) |
|
- | |||||
| 20 | 8011311 | Spring Horizontal (3) |
|
- | |||||
| 21 | 8002385 | Snubber Ring |
|
- | |||||
| 22 | 8002382 | Nut |
|
- | |||||
| 23 | 8011261 | Spring Vertical (short) |
|
- | |||||
| 24 | 8004078 | Arm-idler |
|
- | |||||
| 25 | 8015501 | Washer, Spring |
|
- | |||||
| 26 | 8002457 | Washer (2) |
|
- | |||||
| 27 | 8002456 | Spring-idler |
|
- | |||||
| 28 | 8014925 | Spacer |
|
- | |||||
| 29 | 8002457 | Washer (2) |
|
- | |||||
| 30 | 8002453 | Screw (set) |
|
- | |||||
| 31 | 8006686 | Pulley, Motor |
|
- | |||||
| 32 | 8011271 | Pulley |
|
- | |||||
| 33 | 8004064 | Belt |
|
- | |||||
| 34 | 8014925 | Spacer (3) |
|
- | |||||
| 35 | 8002472 | Plate-support |
|
- | |||||
| 36 | 8014901 | Motor-washer Drive, Two Speed Ge |
|
- |
