SELECT A DIAGRAM

03 - Console


04 - Cabinet, Base, Top, Lid


05 - Outer Tub, Inner Tub, Sub Top, Agit


06 - Pump, Hoses, Water Valve


07 - Motor, Pulleys, Belt, Springs

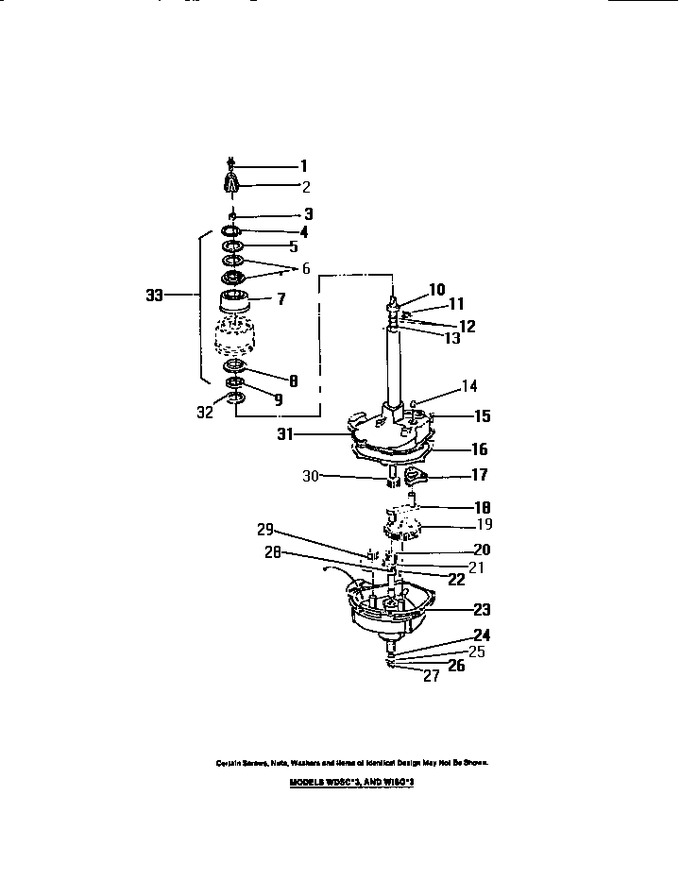

08 - Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8002491		Screw		Appelez-nous	-
2	8014904		Hub, Drive		Appelez-nous	-
3	8002488		Shim		Appelez-nous	-
4	8002483		Ring-snap		Appelez-nous	-
5	8002480		Spacer		Appelez-nous	-
6	8004072		Seal		Appelez-nous	-
7	8004067		Seal		Appelez-nous	-
8	8002479		Slinger		Appelez-nous	-
9	8002478		Washer		Appelez-nous	-
10	8011270		Seal		Appelez-nous	-
11	8002474		Ring-snap		Appelez-nous	-
12	8002485		Spacer		Appelez-nous	-
13	8002481		Washer-thrust		Appelez-nous	-
14	8002803		Plug		Appelez-nous	-
15	8011267		Screw (6)		Appelez-nous	-
16	8002805		Gasket		Appelez-nous	-
17	8011268		Gear		Appelez-nous	-
18	8002809		Rod		Appelez-nous	-
19	8015496		Gear		Appelez-nous	-
20	8014905		Shaft		Appelez-nous	-
21	8002476		Washer-thrust		Appelez-nous	-
22	8002813		Pin (2)		Appelez-nous	-
23	8002815		Housing		Appelez-nous	-
24	8002477		Seal		Appelez-nous	-
25	8002476		Washer-thrust		Appelez-nous	-
26	8002475		Washer		Appelez-nous	-
27	8002474		Ring-snap		Appelez-nous	-
28	8002817		Spring		Appelez-nous	-
29	8002816		Gear		Appelez-nous	-
30	8015507		Shaft, Agitate		Appelez-nous	-
31	8015535		Housing		Appelez-nous	-
32	8002401		Washer-thrust		Appelez-nous	-
33	8950056		Seal-kit		Appelez-nous	-
*64560	8002818		Oil, 1 Quart		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
