Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A3189346 Gasket Appelez-nous -
2 B8386602 Gasket Appelez-nous -
3 C8976102 Gasket, Air Block Appelez-nous -
4 D7865916 Evap Cover-pnt Appelez-nous -
5 D7846011 Assy, Frz Back Appelez-nous -
6 10962601 Harness-ref Liner Appelez-nous -
7 D7838302 Cover, Supply Air Appelez-nous -
8 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 7.43

9 A3189347 Gasket Appelez-nous -
10 R0161085 Kit, Thermostat   (Replaces: C8972010) Special Order $ 111.76

11 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 7.47

12 M0322202 Tie Wire Appelez-nous -
13 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 6.57

14 10164808 Grille, Control Appelez-nous -
15 A3127412 Ext. Fill Tube Appelez-nous -
16 10098801 Rivet Appelez-nous -
17 B8386603 Gasket Appelez-nous -
18 D7865812 Evap. Shield Appelez-nous -
19 D7850202 Drip Tray Pnt. Appelez-nous -
20 M0580003 Grommet Appelez-nous -
21 10629601 Block, Air Coil (left) Appelez-nous -
22 10629001 Block, Air Coil (right) Appelez-nous -
23 R0161090 Kit, Defrost Thermostat   (Replaces: C8972012) Special Order $ 99.59

24 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 133.36

25 WP10428406 Heater, Evap. (230 Vac)   (Replaces: 10428406) Special Order $ 90.29

26 R0170057 Assy,low Side Appelez-nous -
27 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 41.55

28 A1047901 Shim Appelez-nous -
29 C8795501 Fan-evap Appelez-nous -
30 C8881301 Brkt Evap Fan Appelez-nous -
31 WP10513804 Motor, Evap.   (Replaces: C8891604) Special Order $ 231.08

32 D7767705 Brkt, Mtr Shroud Appelez-nous -
33 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 7.43

34 M0580002 Grommet A Appelez-nous -
35 10164702 Control-air Appelez-nous -
36 C8983701 Thermistor Domestic Appelez-nous -
37 10426801 Clip, Air Tunnel Appelez-nous -
38 10527401 Clip, Evap Appelez-nous -
39 10623003 Clip, Evaporator Appelez-nous -
40 M0560005 Support Appelez-nous -
41 A3030321 Gasket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

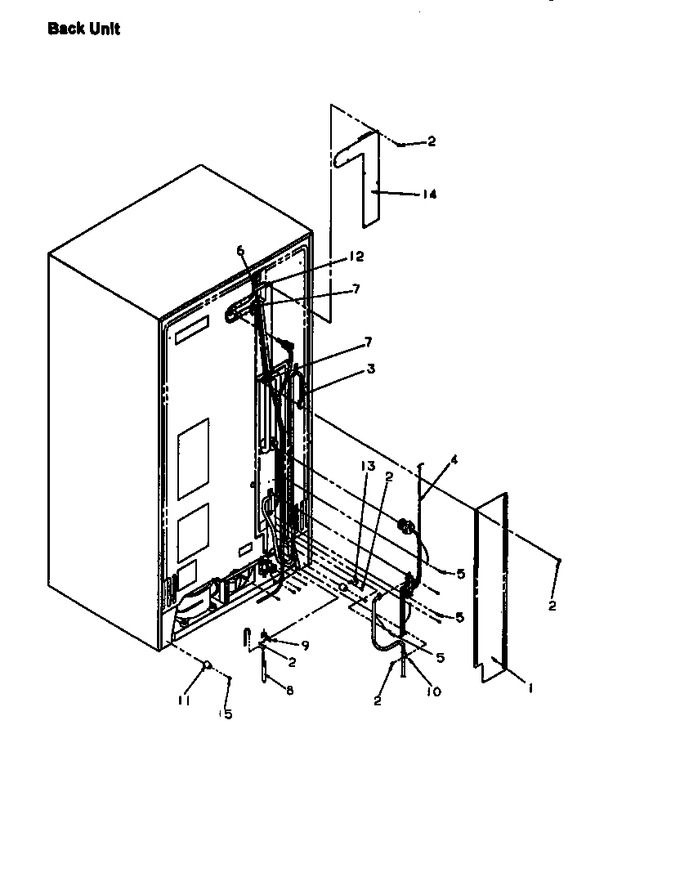

Diagram for SRDE520SW (BOM: P1183101W)
