Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7788910 Assy,mc Back Appelez-nous -
2 10845601 Pan, Drain Appelez-nous -
3 M0201216 Screw - Sm Appelez-nous -
4 10845302 H.v. Box Shelf-e Ct Appelez-nous -
5 10276906 Top, Hv Box Appelez-nous -
6 10874601 Clip-cond. Appelez-nous -
7 A3030302 Gasket Appelez-nous -
8 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.43

9 10898901 Board, H.v. Pc Appelez-nous -
10 WP22002933 Screw, Sm   (Replaces: M0211357) Special Order $ 7.25

11 M0585502 Support-pc Board Appelez-nous -
12 B5742602 Blade, Fan Appelez-nous -
13 WPW10169124 Grommet, Compressor   (Replaces: 10835901) Special Order $ 6.80

14 M0234114 Screw Appelez-nous -
15 10899501 Clamp, Term. Cover Appelez-nous -
16 10877101 Cover-switch Appelez-nous -
17 M0221523 Screw, Shldr Appelez-nous -
18 10899601 Overload/relay Appelez-nous -
19 B5696108 Brkt, Line Filter Appelez-nous -
20 10169902 Relay Appelez-nous -
21 W10848274 Capacitor   (Replaces: 10958301) Special Order $ 167.27

22 10899701 Cover, Terminal Appelez-nous -
23 C8982102 Brkt,cond. Mtr Appelez-nous -
24 D7846901 Motor-condenser Appelez-nous -
25 W10309997 Compressor (220/230 Vac 50hz)   (Replaces: Y10740301) Special Order $ 525.54

26 10959201 Harness, Mc Appelez-nous -
27 10845504 Cond. Fn Shrd Appelez-nous -
28 10492402 Switch, Crushed/cube Appelez-nous -
29 10851301 Insulation, Tube Appelez-nous -
30 M0223803 Screw Appelez-nous -
31 WP489128 Screw   (Replaces: M0253516) Special Order $ 10.26

32 10883404 Assy, Cond/pan E-ct Appelez-nous -
33 10277006 Hv Box- E Ct Appelez-nous -
34 M0108001 Clamp, Tube Appelez-nous -
35 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 6.57

36 C8913701 Support, Mc Appelez-nous -
37 M0217224 Screw Appelez-nous -
38 M0272803 Lock Washer Appelez-nous -
39 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 7.47


    View Diagram in Separate Window     Print Icon   Print Part List

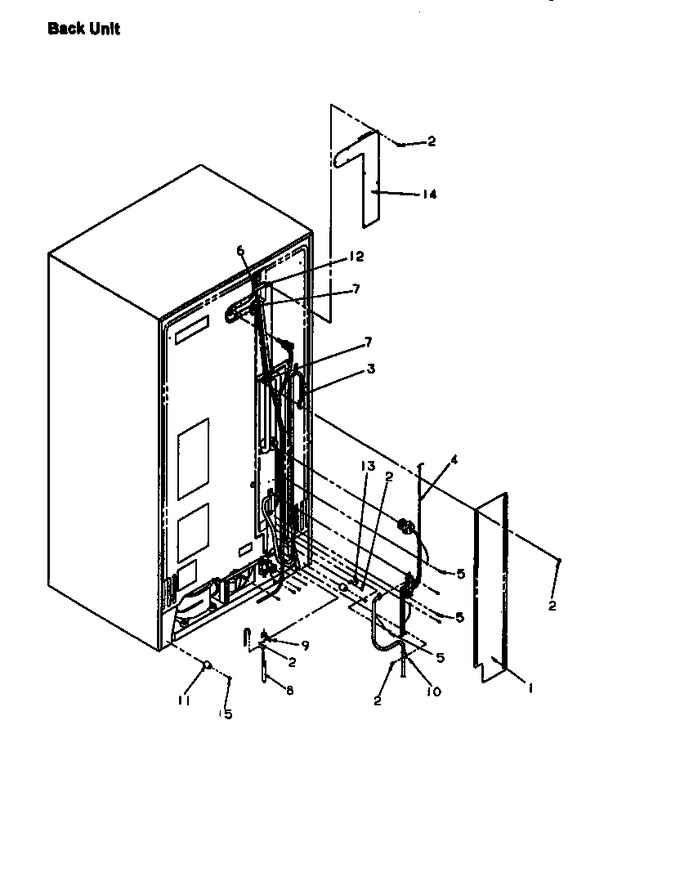

Diagram for SRDE520SW (BOM: P1183101W)
