SELECT A DIAGRAM

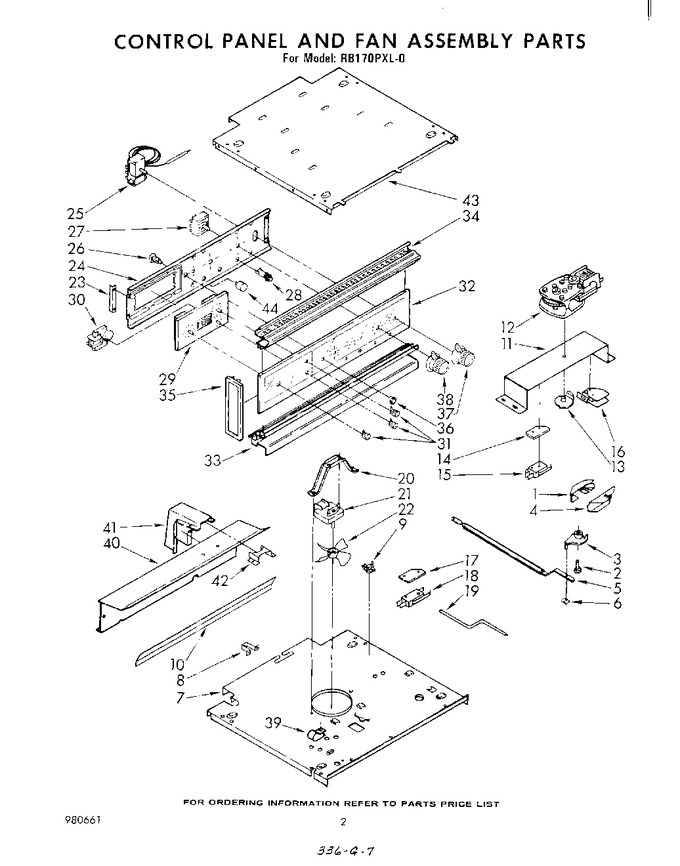

02 - Control Panel And Fan


03 - Upper Oven


04 - Lower Oven, Literature And Optional


05 - Upper Oven Door


06 - Lower Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	877614		Housing, Latch		Appelez-nous	-
1	241422		Washer (2)		Appelez-nous	-
1	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
2	241564		Axle, Latch		Appelez-nous	-
3	877628		Latch, Door (alternate)		Appelez-nous	-
3	834484		Latch, Door (alternate)		Appelez-nous	-
4	256158		Pushnut, 1/4		Appelez-nous	-
4	868513		Cover, Latch Housing		Appelez-nous	-
5	868523		Tie Bar		Appelez-nous	-
6	241547		Pushnut (3/16``) (2)		Appelez-nous	-
7	868979		Casing, Fan		Appelez-nous	-
7	681151		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
8	868798		Spacer, Fan Casing		Appelez-nous	-
8	681151		Screw, 10-24 X 1/2 (13)		Appelez-nous	-
8	486608		Washer, Flat		Appelez-nous	-
9	WP486754		Screw, 6-32 X 5/16   (Replaces: 680406)				$ 7.21
9	868980		Thermal Protector		Appelez-nous	-
10	868981		Shield, Control Panel		Appelez-nous	-
10	681151		Screw, 10-24		Appelez-nous	-
11	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
11	868982		Support, Latch Motor		Appelez-nous	-
12	877619		Motor (alternate)		Appelez-nous	-
12	273225		Motor (screw, 8-32 X 5/16 (2))		Appelez-nous	-
12	868983		Motor (alternate)		Appelez-nous	-
12	834849		Motor (alternate)		Appelez-nous	-
13	455105		Cam, Door Latch (pin, Spring)		Appelez-nous	-
13	877629		Cam, Door Latch (alternate)		Appelez-nous	-
13	834483		Cam, Door Latch (alternate)		Appelez-nous	-
13	241547		Cam, Door Latch (pushnut, 3/16``)		Appelez-nous	-
15	834906		Switch, Lower Limit (1) (alternate)		Appelez-nous	-
15	868986		Switch, Lower Limit (1) (alternate)		Appelez-nous	-
15	9405910		Switch, Lower Limit (1) (screw, 4-40 X 5/8 (2))		Appelez-nous	-
15	868985		Switch, Lower Limit (1) (alternate)		Appelez-nous	-
16	834903		Screw, 4-40 X 1-1/4 (2)		Appelez-nous	-
16	877687		Switch, Upper Limit		Appelez-nous	-
17	868528		Insulator, Switch		Appelez-nous	-
18	834852		Screw (2)		Appelez-nous	-
18	868527		Switch, Limit		Appelez-nous	-
19	868526		Rod Switch Interlock		Appelez-nous	-
20	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
20	866393		Bracket, Fan Motor		Appelez-nous	-
21	877550		Motor, Fan (alternate)		Appelez-nous	-
21	868989		Motor, Fan (alternate)		Appelez-nous	-
21	877615		Motor, Fan (alternate)		Appelez-nous	-
21	271482		Motor, Fan (nut, 6/32 (2))		Appelez-nous	-
22	868990		Fan Blade		Appelez-nous	-
22	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
23	866395		Support, Control Bracket (2)		Appelez-nous	-
23	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
24	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
24	868402		Bracket, Control		Appelez-nous	-
25	486525		Thermostat, Oven (screw, 8-32 X 3/16 (2))		Appelez-nous	-
25	868808		Thermostat, Oven (upper Oven)		Appelez-nous	-
25	487428		Thermostat, Oven (screw, 6-32 X 3/16 (2))		Appelez-nous	-
25	868404		Thermostat, Lower Oven		Appelez-nous	-
26	98754		Nut, 3/8-27		Appelez-nous	-
26	866138		Switch, Oven Light		Appelez-nous	-
27	866438		Switch Selector (lower Oven)		Appelez-nous	-
27	486525		Switch Selector (screw, 8-32 X 3/16 (2))		Appelez-nous	-
27	868991		Switch Selector (upper Oven)		Appelez-nous	-
28	868172		Indicator, Light (oven) (2)		Appelez-nous	-
28	868433		Indicator, Light (2) (clean, Lock)		Appelez-nous	-
29	487836		Nut, 10-32 (2)		Appelez-nous	-
29	868992		Timer, Door (digital) (includes Illus. 30 & 31)		Appelez-nous	-
30	866403		Motor, Timer		Appelez-nous	-
31	241383		Knob, Timer (3)		Appelez-nous	-
32	877510		Panel, Glass (control)		Appelez-nous	-
32	866454		Tape, Foam (16``)		Appelez-nous	-
33	868531		Base, Control Panel		Appelez-nous	-
34	595119		Screw, 10-24 (5)		Appelez-nous	-
34	877551		Top, Control Panel		Appelez-nous	-
35	868996		End Cap (l.h.)		Appelez-nous	-
35	868430		End Cap (screw, 10-24 X 1/2 (4))		Appelez-nous	-
35	868995		End Cap (r.h.)		Appelez-nous	-
36	866053		Bezel, Switch		Appelez-nous	-
37	868997		Knob, Thermostat (2)		Appelez-nous	-
38	868998		Knob, Selector (2)		Appelez-nous	-
39	865797		Clamp, Strain Relief		Appelez-nous	-
39	273225		Screw, 8-32 X 5/16		Appelez-nous	-
40	866411		Housing, Control		Appelez-nous	-
41	866412		Duct, Oven Vent		Appelez-nous	-
41	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
42	868222		Extension, Oven Vent		Appelez-nous	-
42	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
43	868102		Top, Casing		Appelez-nous	-
43	681151		Screw, 10-24 X 1/2 (15)		Appelez-nous	-
44	834956		Bumper, Stem (2)		Appelez-nous	-
