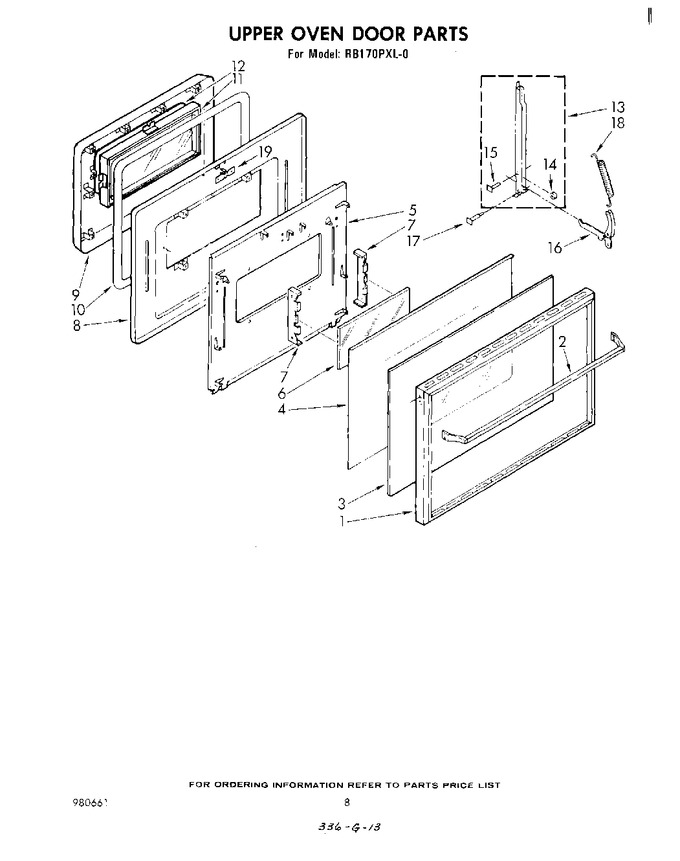

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868999		Frame, Oven Door		Appelez-nous	-
2	877500		Handle, Oven Door (includes 866047 End Caps)		Appelez-nous	-
2	271482		Nut, 6-32 (4)		Appelez-nous	-
2	866155		Screw, 6-32 X 3/8 (4)		Appelez-nous	-
3	868223		Glass, Outer		Appelez-nous	-
4	868224		Panel, Heat Reflector		Appelez-nous	-
5	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
5	877501		Panel, Air Wash		Appelez-nous	-
6	868502		Glass, Inner		Appelez-nous	-
7	868503		Retainer, Glass		Appelez-nous	-
8	681151		Screw, 10-24 X 1/2 (7)		Appelez-nous	-
8	868430		Screw, 10-24 X 1/2 (5)		Appelez-nous	-
8	877502		Liner, Oven Door		Appelez-nous	-
9	142001		Plug Button 3/16``		Appelez-nous	-
9	877503		Baffle, Weldment		Appelez-nous	-
10	877504		Seal, Oven Door		Appelez-nous	-
11	877505		Window Assembly		Appelez-nous	-
11	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
12	877506		Seal, Window		Appelez-nous	-
13	865972		Channel, Assembly (2)		Appelez-nous	-
14	834471		Roller,\ Door\ Stop (2)		Appelez-nous	-
15	241423		Rivet		Appelez-nous	-
16	865640		Arm, Hinge		Appelez-nous	-
17	241334		Pin, Hinge		Appelez-nous	-
18	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
18	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
18	241312		Spring, Door		Appelez-nous	-
18	241422		Washer		Appelez-nous	-
19	241422		Washer (2)		Appelez-nous	-
19	877507		Strike		Appelez-nous	-
19	868430		Screw, 10-24 X 1/2 (5)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
