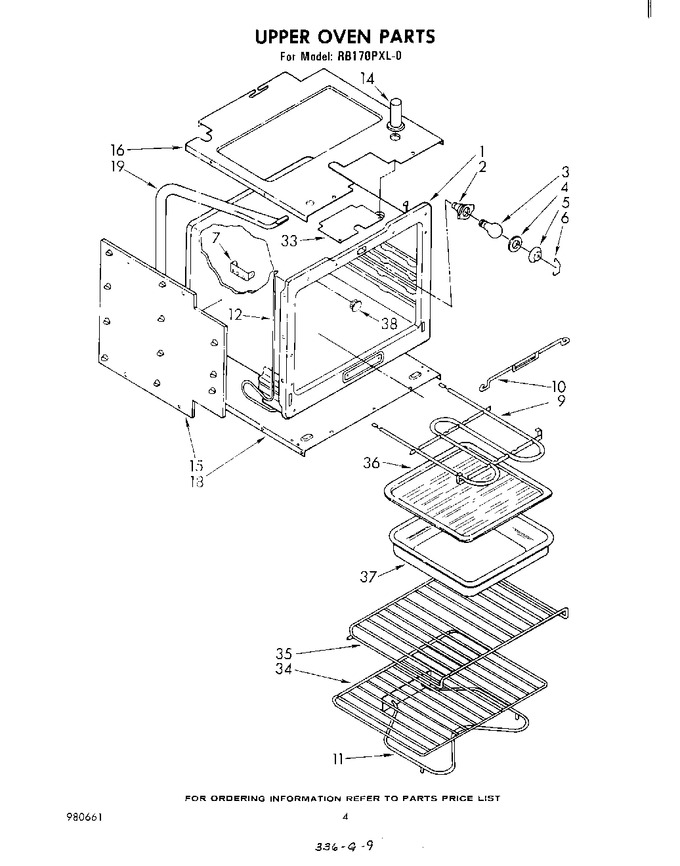

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	877644		Oven (27`` Pyro)		Appelez-nous	-
2	866133		Socket, Light		Appelez-nous	-
2	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
3	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 17.51
3	241422		Washer (2)		Appelez-nous	-
4	241609		Gasket, Light		Appelez-nous	-
5	241592		Cover, Light		Appelez-nous	-
6	866134		Retainer, Oven Light		Appelez-nous	-
7	486146		Screw, 10-24 X 1/2				$ 12.83
7	865959		Bracket, Thermo Bulb		Appelez-nous	-
9	486146		Screw, 10-24 X1/2 (2)				$ 12.83
9	865638		Unit, Broil		Appelez-nous	-
10	866429		Hanger, Broil Unit		Appelez-nous	-
10	486146		Screw, 10-24 X1/2 (2)				$ 12.83
11	834649		Unit, Bake (screw, 10-24 X 7/8 (2))		Appelez-nous	-
11	EB770		Unit, Bake (alternate)   (Replaces: 866375)			Immediately	$ 44.96
11	WP866375		Unit, Bake (alternate)   (Replaces: 868969)				$ 120.84
12	868970		Heater, Mullion		Appelez-nous	-
14	865939		Vent Tube (alternate)		Appelez-nous	-
14	241428		Vent Tube (screw, 10-24 X 3/8 (2))		Appelez-nous	-
14	868973		Vent Tube (alternate)		Appelez-nous	-
15	866376		Retainer, Insulation Side (2)		Appelez-nous	-
16	868974		Retainer, Insulation Top		Appelez-nous	-
18	681151		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
18	868092		Partition Oven		Appelez-nous	-
19	868033		Tube, Oven Vent		Appelez-nous	-
33	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
33	868524		Cover, Access		Appelez-nous	-
34	834731		Rack, Oven Regular (1)		Appelez-nous	-
35	834732		Rack, Oven (offset)		Appelez-nous	-
36	4396923		Grill, Broiler Pan   (Replaces: 866219)			Immediately	$ 54.64
37	866218		Pan, Broiler		Appelez-nous	-
38	142017		Plug, Button		Appelez-nous	-
