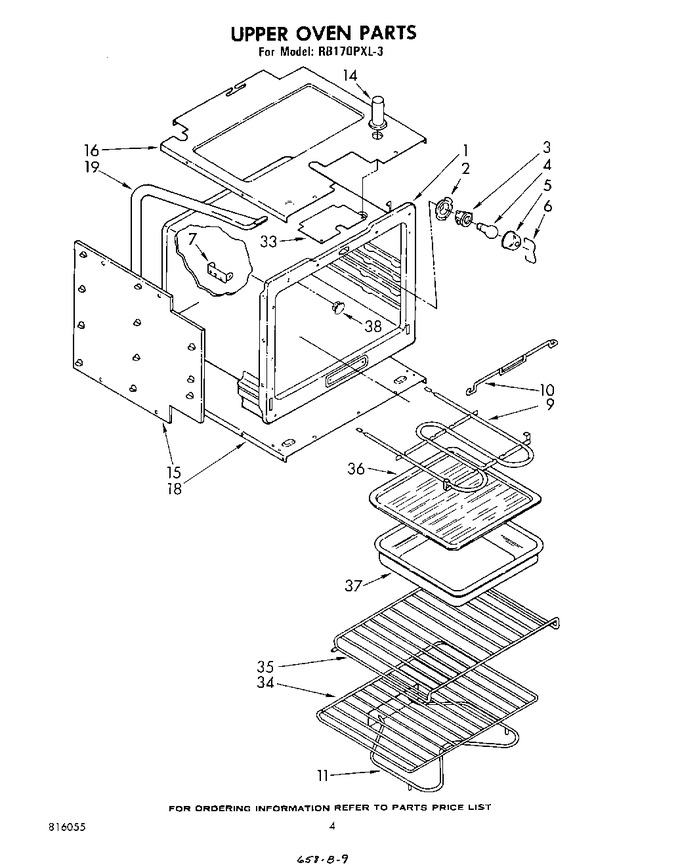

03 - Upper Oven


04 - Lower Oven, Literature And Optional


05 - Upper Oven Door


06 - Lower Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	877799		Oven (27`` Pyro)		Appelez-nous	-
2	486146		Screw, 10-24 X1/2 (2)				$ 12.83
2	877802		Cup, Light		Appelez-nous	-
3	W10856866		Receptacle, Light   (Replaces: 877803)				$ 6.80
4	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 17.51
5	877804		Lens, Light		Appelez-nous	-
6	877805		Retainer, Lens		Appelez-nous	-
7	486146		Screw, 10-24 X 1/2				$ 12.83
7	865959		Bracket, Thermo Bulb		Appelez-nous	-
9	486146		Unit, Broil (screw, 10-24 X 1/2 (2))				$ 12.83
9	261968		Unit, Broiler (208v)		Appelez-nous	-
9	865638		Unit, Broil ((240v))		Appelez-nous	-
10	866429		Hanger, Broil Unit		Appelez-nous	-
10	486146		Screw, 10-24 X1/2 (2)				$ 12.83
11	486146		Unit Bake (screw, 10-24 X 1/2 (2))				$ 12.83
11	EB770		Unit, Bake (alternate (240v))   (Replaces: 866375)			Immediately	$ 44.96
11	WP866375		Unit, Bake (alternate (240v))   (Replaces: 868969)				$ 120.84
11	261967		Unit, Bake (alternate (208v))		Appelez-nous	-
14	241428		Screw, 10-24 X 3/8 (2)		Appelez-nous	-
14	877880		Vent Tube		Appelez-nous	-
15	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
15	866376		Retainer, Insulation Side (2)		Appelez-nous	-
16	868974		Retainer, Insulation Top		Appelez-nous	-
16	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
18	681151		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
18	868092		Partition Oven		Appelez-nous	-
19	868033		Tube, Oven Vent		Appelez-nous	-
33	868524		Cover, Access		Appelez-nous	-
33	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
34	834731		Rack, Oven Regular (1)		Appelez-nous	-
35	834732		Rack, Oven (offset)		Appelez-nous	-
36	4396923		Grill, Broiler Pan   (Replaces: 866219)			Immediately	$ 54.64
37	866218		Pan, Broiler		Appelez-nous	-
38	142017		Plug, Button		Appelez-nous	-
