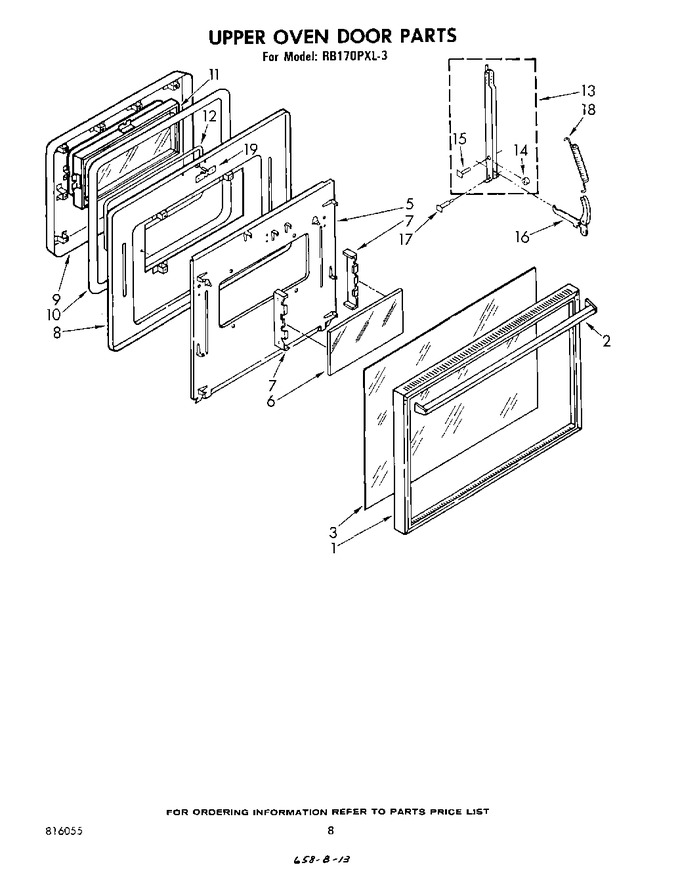

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	877887		Frame, Oven Door		Appelez-nous	-
2	877888		Handle, Oven Door		Appelez-nous	-
2	877889		Screw, 6-32 X 1/2 (4)		Appelez-nous	-
3	877890		Glass, Outer		Appelez-nous	-
5	877501		Panel, Air Wash		Appelez-nous	-
5	340184		Screw, 10-16 X 1-1/2   (Replaces: 877702)				$ 12.70
5	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
6	868502		Glass, Inner		Appelez-nous	-
7	868503		Retainer, Glass (2)		Appelez-nous	-
8	868430		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
8	877502		Liner, Oven Door		Appelez-nous	-
8	681151		Screw, 10-24 X 1/2 (7)		Appelez-nous	-
9	142001		Plug Button 3/16``		Appelez-nous	-
9	877503		Baffle, Weldment		Appelez-nous	-
10	877504		Seal, Oven Door		Appelez-nous	-
11	877505		Window Assembly		Appelez-nous	-
11	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
12	877506		Seal, Window		Appelez-nous	-
13	865972		Channel, Assembly (2)		Appelez-nous	-
14	834471		Roller,\ Door\ Stop (2)		Appelez-nous	-
15	241423		Rivet (2)		Appelez-nous	-
16	865640		Arm, Hinge (2)		Appelez-nous	-
17	877884		Pin, Hinge (2)		Appelez-nous	-
18	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
18	241312		Spring, Door (2)		Appelez-nous	-
18	816058		Washer (2)		Appelez-nous	-
19	816058		Washer (2)		Appelez-nous	-
19	877507		Strike		Appelez-nous	-
19	868430		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
