SELECT A DIAGRAM

02 - Control Panel And Fan


03 - Upper Oven


04 - Lower Oven, Literature And Optional


05 - Upper Oven Door

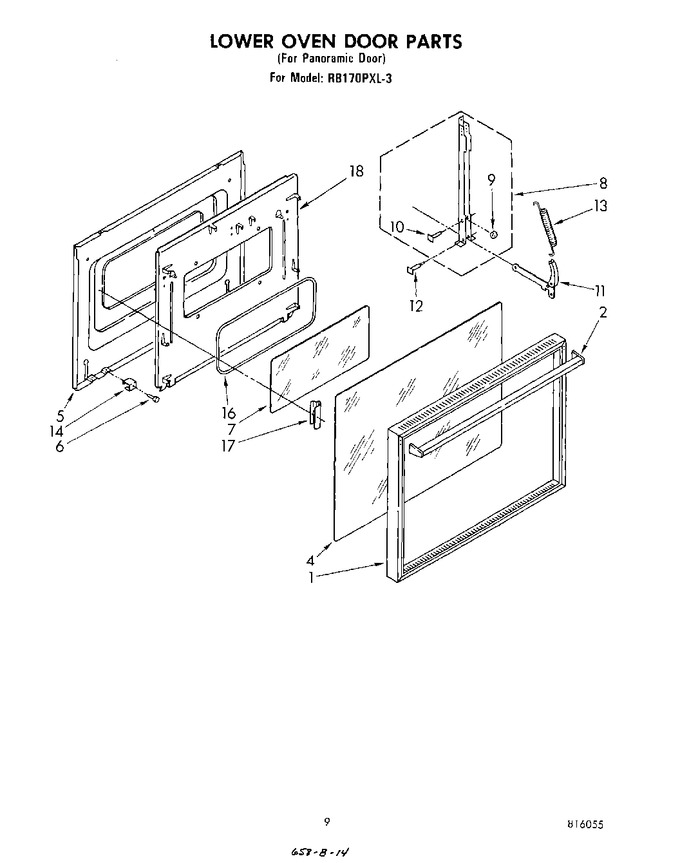

06 - Lower Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868430		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
1	877887		Frame, Oven Door		Appelez-nous	-
2	877889		Screw, 6-32 X 1/2 (4)		Appelez-nous	-
2	877888		Handle		Appelez-nous	-
4	877890		Glass, Outer		Appelez-nous	-
5	877885		Liner, Oven Door		Appelez-nous	-
5	868430		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
5	816058		Washer (4)		Appelez-nous	-
6	866444		Bumper (4)		Appelez-nous	-
7	877893		Glass, Inner		Appelez-nous	-
8	865972		Channel, Assembly (2)		Appelez-nous	-
8	816058		Washer (2)		Appelez-nous	-
8	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
9	834471		Roller,\ Door\ Stop (2)		Appelez-nous	-
10	241423		Rivet (2)		Appelez-nous	-
11	877896		Arm Assembly (2)		Appelez-nous	-
12	877884		Pin, Hinge (2)		Appelez-nous	-
13	241314		Spring, Door (2)		Appelez-nous	-
14	877613		Spacer, Door (4)		Appelez-nous	-
16	877892		Seal, Inner Glass		Appelez-nous	-
17	877894		Retainer, Inner Glass		Appelez-nous	-
18	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
18	877895		Panel, Air Wash		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
