Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 877559 Retainer, Insulation Appelez-nous -
2 877560 Shield, Bottom Appelez-nous -
3 877561 Box, Outer Appelez-nous -
3 680363 Screw,10-24 X 1/2 Appelez-nous -
3 W10759522 Screw, 8-15 X 3/4 (4)   (Replaces: 488568) Special Order $ 7.42

5 868959 Screw, 10-24 X 1/4 (3) Appelez-nous -
5 868417 Divider, Box Appelez-nous -
6 868461 Pan, Foam Appelez-nous -
7 868959 Screw, 10-24 X 1/4 (3) Appelez-nous -
7 868419 Shield, Wire Appelez-nous -
8 868420 Receptacle, Female (2) Appelez-nous -
9 868959 Screw, 10-24 X 1/4 (4) Appelez-nous -
9 868421 Clip, Receptacle (6) Appelez-nous -
10 868422 Terminal, Female (15) Appelez-nous -
12 WP8203546 Block, Terminal (main)   (Replaces: 241212) In-Stock Immediately $ 27.12

12 834649 Screw, 10-24 X 7/8 (2) Appelez-nous -
12 487836 Nut, 10-32 (6) Appelez-nous -
13 868959 Screw, 10-24 X 1/4 (2) Appelez-nous -
13 868423 Cover, Access Appelez-nous -
14 877554 Bracket, Control Appelez-nous -
15 868955 Switch, Infinite (6) Appelez-nous -
15 486525 Screw, 8-32 X 3/16 (12) Appelez-nous -
17 868433 Light, Indicator (3) Appelez-nous -
18 877563 Panel, Control (glass) Appelez-nous -
18 866454 Tape, Foam Appelez-nous -
19 877564 Frame, Cooktop Appelez-nous -
20 865751 Screw (5) Appelez-nous -
20 868467 Clip (4) Appelez-nous -
20 868430 Screw, 10-24 X 1/2 (8) Appelez-nous -
20 877565 Shield, Front Appelez-nous -
21 868430 Screw 10-24 X 1/2 Appelez-nous -
21 877558 Spacer, End Appelez-nous -
22 868430 Screw 10-24 X 1/2 Appelez-nous -
22 868421 Clip, Receptacle Mounting Appelez-nous -
24 868465 Bushing, Switch (6) Appelez-nous -
25 868431 Control Knob (6) Appelez-nous -
26 980662 List, Repair Parts Appelez-nous -
26 868967 Installation Instructions Appelez-nous -
26 877515 Guide, Use & Care Appelez-nous -
26 868601 Receptacle, Female (1) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

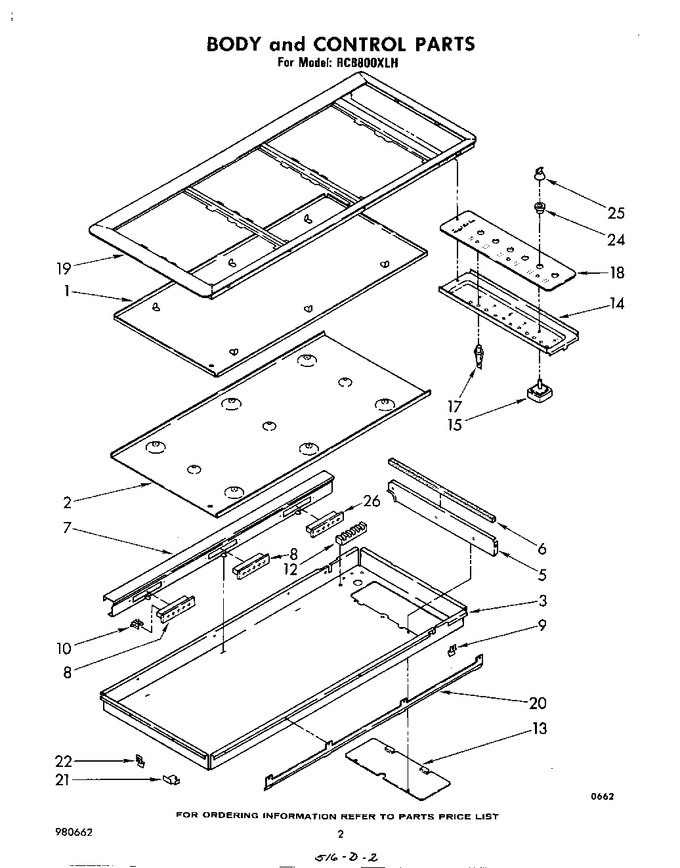

Diagram for RC8800XLH
