SELECT A DIAGRAM

02 - Body And Control , Lit/optional


03 - Surface Unit


04 - Surface Unit Rck886-1 (242898)


05 - Grille Kit Rck 891 (242885)


06 - Rotisserie Kit Rck892 (242886)


07 - Griddle Rck 884 (261950) , Cutting


08 - Surface Unit Rck 889-1 (242903)


09 - Smooth Top Rck 893 (242887)

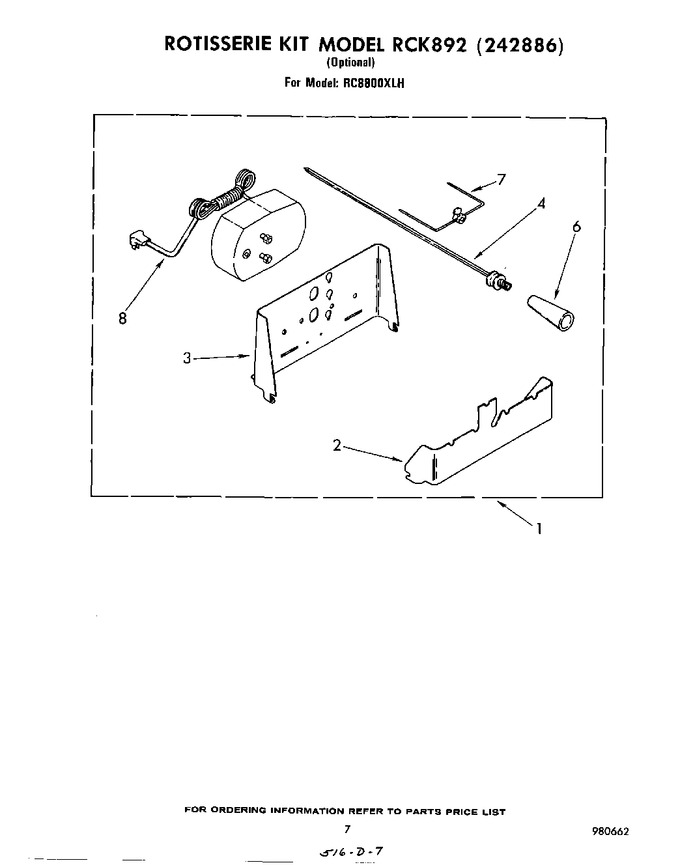

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242886		Rotisserie Kit, Complete				$ 243.50
2	877596		Plate, Front		Appelez-nous	-
3	877597		Plate, Rear		Appelez-nous	-
4	868454		Rod, Skewer		Appelez-nous	-
6	241210		Handle, Rod		Appelez-nous	-
7	241209		Holder, Meat		Appelez-nous	-
8	868455		Motor, Rotisserie		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
