SELECT A DIAGRAM

02 - Body And Control , Lit/optional


03 - Surface Unit


04 - Surface Unit Rck886-1 (242898)

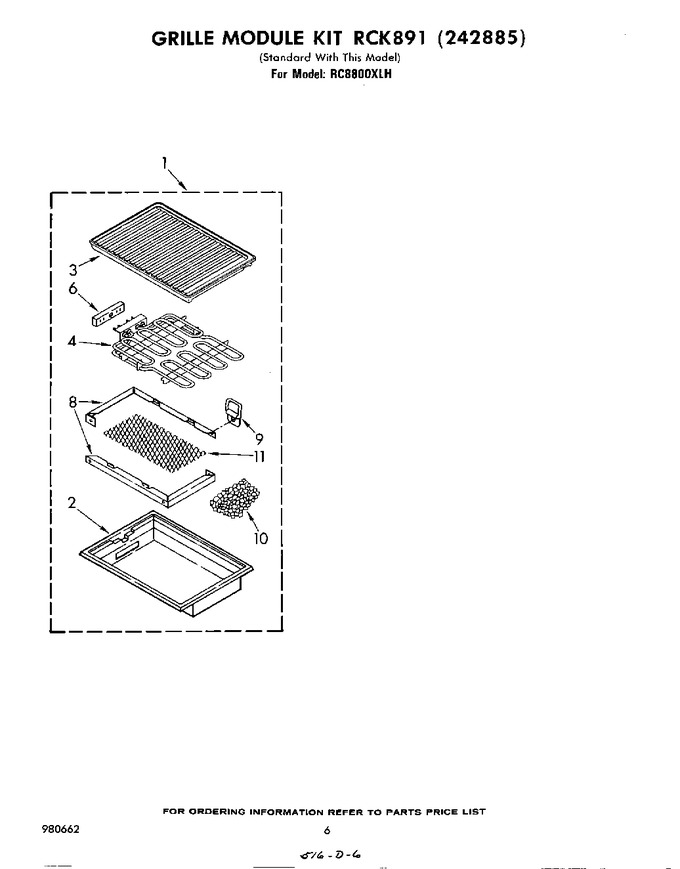

05 - Grille Kit Rck 891 (242885)


06 - Rotisserie Kit Rck892 (242886)


07 - Griddle Rck 884 (261950) , Cutting


08 - Surface Unit Rck 889-1 (242903)


09 - Smooth Top Rck 893 (242887)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242885		Grill Kit, Complete		Appelez-nous	-
2	877548		Pan, Grill		Appelez-nous	-
3	877549		Rack, Grill (2)		Appelez-nous	-
4	877541		Unit, Dual (2200w)		Appelez-nous	-
6	868878		Pushnut, 1/4``		Appelez-nous	-
6	868437		Receptacle, Male		Appelez-nous	-
8	877542		Frame, Basket (2)		Appelez-nous	-
9	877543		Handle, Basket (2)		Appelez-nous	-
9	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
10	868460		Rocks, Lava (4 Lbs.)		Appelez-nous	-
11	877609		Screen, Basket (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
