SELECT A DIAGRAM

01 - Cooktop


02 - Door And Drawer


03 - Control Panel


04 - Oven


05 - Lit/optional

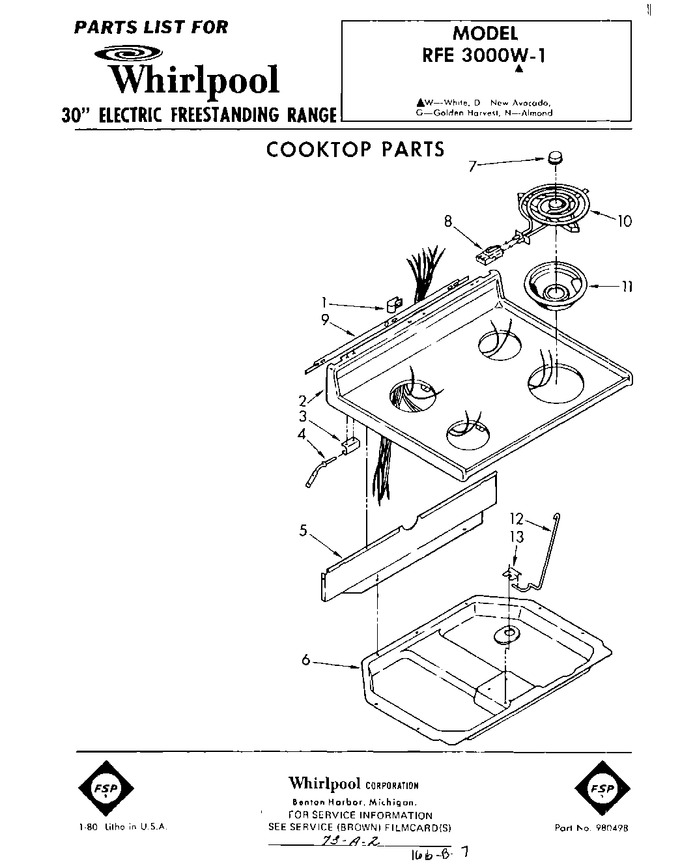

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308605		Clamp, Cable   (Replaces: 308605)				$ 10.58
1	W11693756		Screw, 8a X 5/8   (Replaces: 258665)			Immediately	$ 13.28
2	307870		Cooktop (white)		Appelez-nous	-
2	307867		Cooktop (golden Harvest)		Appelez-nous	-
2	307869		Cooktop (new Avocado)		Appelez-nous	-
2	307872		Cooktop (almond)		Appelez-nous	-
2	254230		Cooktop (screw, 10a X 1/2)		Appelez-nous	-
3	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 7.47
3	307965		Bracket, Cooktop		Appelez-nous	-
4	307966		Hinge Pin, Cooktop		Appelez-nous	-
5	307973		Shield, Wiring		Appelez-nous	-
5	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
6	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.43
6	308581		Screw, 10 X .5 (2) (hex Head)		Appelez-nous	-
6	307929		Burner Box		Appelez-nous	-
7	309926		Medallion (4)		Appelez-nous	-
8	WP486754		Screw, 6-32 X 1/4 (4)   (Replaces: 246119)				$ 7.21
8	330031		Receptacle   (Replaces: 258858)			Immediately	$ 17.93
9	309232		Barrier		Appelez-nous	-
10	309917		Unit, Surface (includes Illus. 7) (8`` (1))		Appelez-nous	-
10	309916		Unit, Surface (includes Illus. 7) (6`` (3))		Appelez-nous	-
11	WPW10196406		Pan (6`` (3))   (Replaces: 308539)			Immediately	$ 12.05
11	W10196405RW		Pan (8`` (1))   (Replaces: 308540)			Immediately	$ 19.64
12	307968		Rod, Cooktop		Appelez-nous	-
13	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.43
13	307967		Retainer, Cooktop		Appelez-nous	-
