SELECT A DIAGRAM

01 - Cooktop


02 - Door And Drawer


03 - Control Panel


04 - Oven


05 - Lit/optional

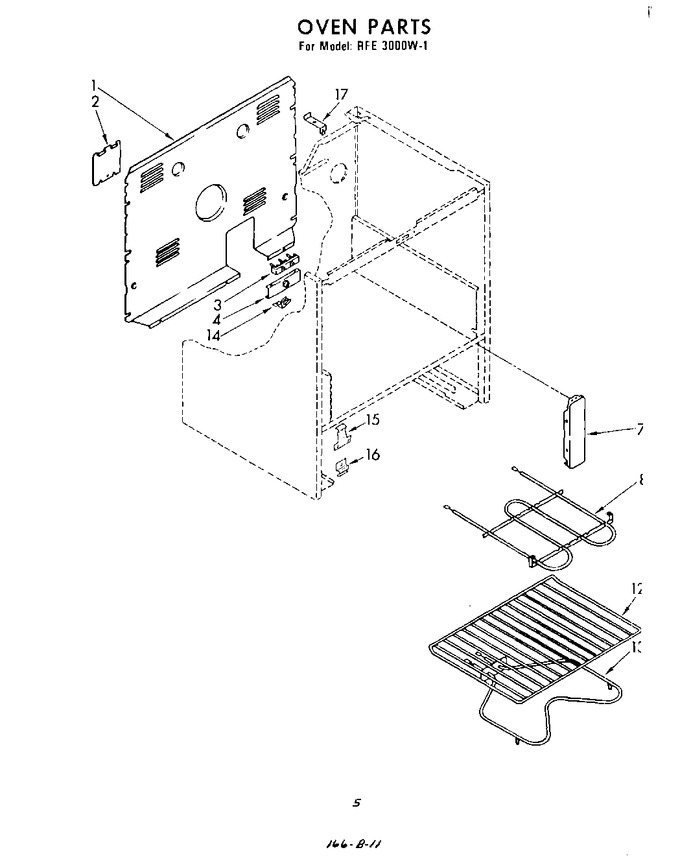

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 7.62
1	307971		Cover, Rear		Appelez-nous	-
2	307972		Cover, Access		Appelez-nous	-
2	WP308544		Screw, 10-24 X 1/2 (2)   (Replaces: 308544)			Immediately	$ 7.47
3	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
3	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.77
3	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
4	307970		Bracket, Service		Appelez-nous	-
4	WP681414		Screw, 10-24 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.62
7	307981		Bracket, Mounting		Appelez-nous	-
8	W11656009		Unit, Broil   (Replaces: 258107)		Appelez-nous	-
8	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
12	308173		Rack, Oven		Appelez-nous	-
13	WP308180		Unit, Bake   (Replaces: 308180)				$ 120.00
13	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
14	WP681414		Screw, 10-32   (Replaces: 343631)			Immediately	$ 7.62
14	308498		Ground Strap		Appelez-nous	-
15	307958		Spring, Panel (2)		Appelez-nous	-
16	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.62
16	307957		Bracket, Mounting (2)		Appelez-nous	-
17	980498		List, Parts		Appelez-nous	-
17	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
17	350956		Enamel, Almond (13 Oz. Spray Can)				$ 48.61
17	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
17	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
17	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
17	253879		Wire, 18 Ga. (red) (25 Ft.)		Appelez-nous	-
17	253895		Wire, 18 Ga. (black) (25 Ft.)		Appelez-nous	-
17	253896		Wire, 18 Ga. (white) (25 Ft.)		Appelez-nous	-
17	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 52.37
17	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 52.37
17	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
17	261582		Grease		Appelez-nous	-
17	308500		Book, Cooking Guide		Appelez-nous	-
17	308244		Instructions, Operating		Appelez-nous	-
17	308494		Installation Instructions		Appelez-nous	-
17	309102		Stand Off		Appelez-nous	-
17	350942		Primer, White (12 Oz. Spray Can)   (Replaces: 206922)				$ 84.73
17	206925		Leveler, Enamel (12 Oz. Spray Can)		Appelez-nous	-
17	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 799339)				$ 53.90
17	350930		Enamel, White (12 Oz. Spray Can)   (Replaces: 799343)			Immediately	$ 36.11
17	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
17	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
17	261888		Enamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
17	261890		Enamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
17	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
17	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
17	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
17	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
17	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
17	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
17	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
17	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
17	253881		Wire, 14 Ga. (white) (25 Ft.)		Appelez-nous	-
17	253882		Wire, 14 Ga. (black) (25 Ft.)		Appelez-nous	-
17	253883		Wire, 14 Ga. (red) (25 Ft.)		Appelez-nous	-
17	253893		Wire, 14 Ga. (blue) (25 Ft.)		Appelez-nous	-
17	253894		Wire, 14 Ga. (orange) (25 Ft.)		Appelez-nous	-
17	253897		Wire, 16 Ga. (black) (25 Ft.)		Appelez-nous	-
17	253900		Wire, 16 Ga. (red) (25 Ft.)		Appelez-nous	-
17	253901		Wire, 16 Ga. (white) (25 Ft.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
