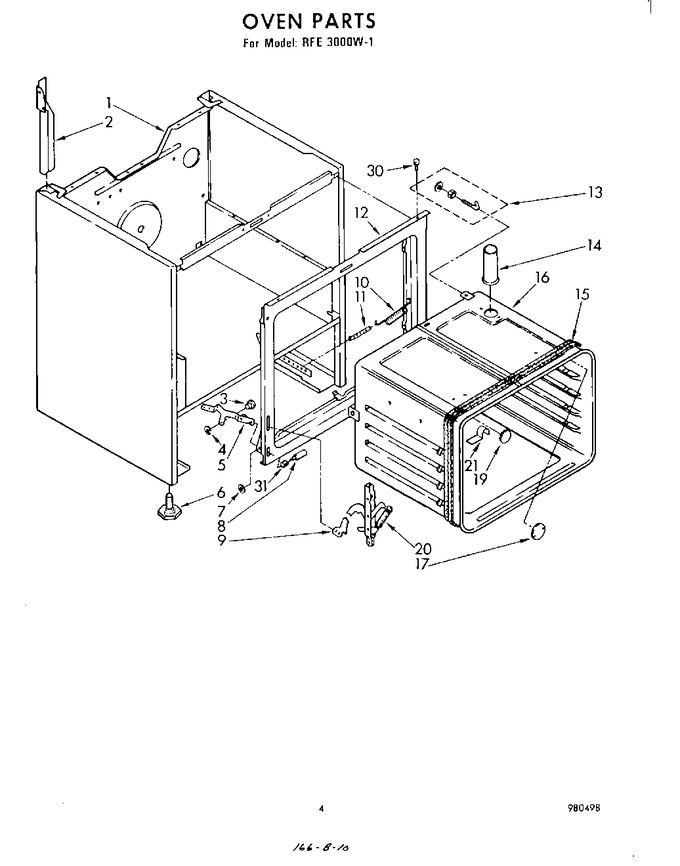

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327875		Main Chassis (almond)		Appelez-nous	-
1	327871		Main Chassis (white)		Appelez-nous	-
1	327872		Main Chassis (new Avocado)		Appelez-nous	-
1	327874		Main Chassis (golden Harvest)		Appelez-nous	-
2	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 7.47
2	308131		Support, Channel (r.h.)		Appelez-nous	-
2	308132		Support, Channel (l.h.)		Appelez-nous	-
3	WP307986		Hinge Pin   (Replaces: 307986)				$ 14.23
4	307594		Ring, Retainer		Appelez-nous	-
5	327890		Hinge (r.h.)		Appelez-nous	-
5	258857		Screw, 10-32 X 1/2		Appelez-nous	-
5	327891		Hinge (l.h.)		Appelez-nous	-
6	WP233550		Foot, Dryer   (Replaces: 233550)				$ 7.52
7	308306		Pushnut		Appelez-nous	-
8	307985		Pin, Hinge				$ 29.54
9	327924		Channel Arm		Appelez-nous	-
10	308127		Spring, Oven Door				$ 11.75
11	WP308125		Anchor, Spring   (Replaces: 308125)				$ 11.47
12	WP681414		Screw, 10-16 X 1/2 (5)   (Replaces: 343641)			Immediately	$ 7.62
12	327886		Frame, Front		Appelez-nous	-
13	261883		Oven Mounting Kit		Appelez-nous	-
14	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
14	307960		Vent, Oven		Appelez-nous	-
15	252893		Clip (2)		Appelez-nous	-
15	309107		Seal, Oven				$ 63.50
16	254230		Screw, 10a X 1/2		Appelez-nous	-
16	328470		Oven		Appelez-nous	-
17	254230		Screw, 10a X 1/2		Appelez-nous	-
17	308543		Cover, Plate		Appelez-nous	-
19	257314		Plug Button		Appelez-nous	-
20	308207		Spring, Door Stop		Appelez-nous	-
21	98005642		Clip, Thermout   (Replaces: 258139)			Immediately	$ 78.37
30	238614		Bumper				$ 76.31
31	309111		Snubber, Door		Appelez-nous	-
