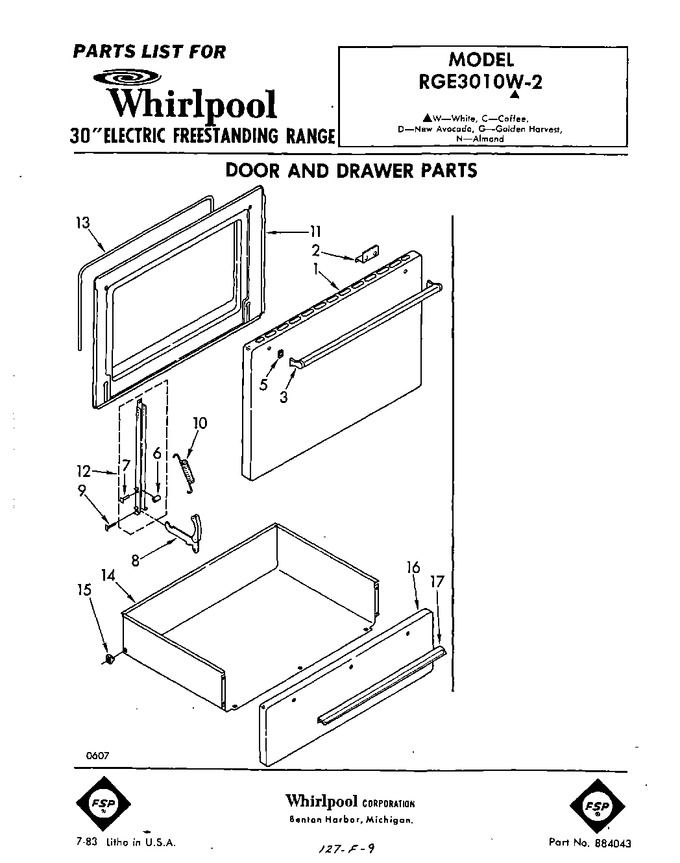

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868593		Panel, Oven Door (white)		Appelez-nous	-
1	868596		Panel, Oven Door (almond)		Appelez-nous	-
1	868594		Panel, Oven Door (new Avocado)		Appelez-nous	-
1	868595		Panel, Oven Door (golden Harvest)		Appelez-nous	-
1	868597		Panel, Oven Door (coffee)		Appelez-nous	-
1	247326		Panel, Oven Door (screw, 10-24 X 1/2)		Appelez-nous	-
2	865924		Spacer, Oven Door		Appelez-nous	-
3	866039		Door Handle Assembly		Appelez-nous	-
5	834993		Spacer, Handle (2)		Appelez-nous	-
5	487392		Screw, 10-24 X 5/8		Appelez-nous	-
6	834471		Roller, Stop (2)		Appelez-nous	-
7	241423		Rivet (2)		Appelez-nous	-
8	865640		Arm Assembly (2)		Appelez-nous	-
9	241334		Pin, Hinge (2)		Appelez-nous	-
10	241314		Spring, Door (2)		Appelez-nous	-
11	877633		Liner, Door		Appelez-nous	-
12	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
12	241422		Washer (2)		Appelez-nous	-
12	595119		Screw, 10-24 X 5/8 (5)		Appelez-nous	-
12	865972		Channel Assembly		Appelez-nous	-
13	865977		Gasket, Door (alternate)		Appelez-nous	-
13	877634		Gasket, Door (alternate)		Appelez-nous	-
14	877716		Drawer Assembly		Appelez-nous	-
15	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
15	877717		Guide, Drawer		Appelez-nous	-
16	441256		Panel, Drawer (hexnut, 10-24 (3))		Appelez-nous	-
16	877847		Panel, Drawer (white)		Appelez-nous	-
16	877851		Panel, Drawer (almond)		Appelez-nous	-
16	877849		Panel, Drawer (new Avocado)		Appelez-nous	-
16	877850		Panel, Drawer (golden Harvest)		Appelez-nous	-
16	877848		Panel, Drawer (coffee)		Appelez-nous	-
16	246625		Panel, Drawer (screw, 10-24 X 3/8)		Appelez-nous	-
17	868602		Handle, Drawer		Appelez-nous	-
17	868585		Screw, 10-24 X 3/8 (5)		Appelez-nous	-
17	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
