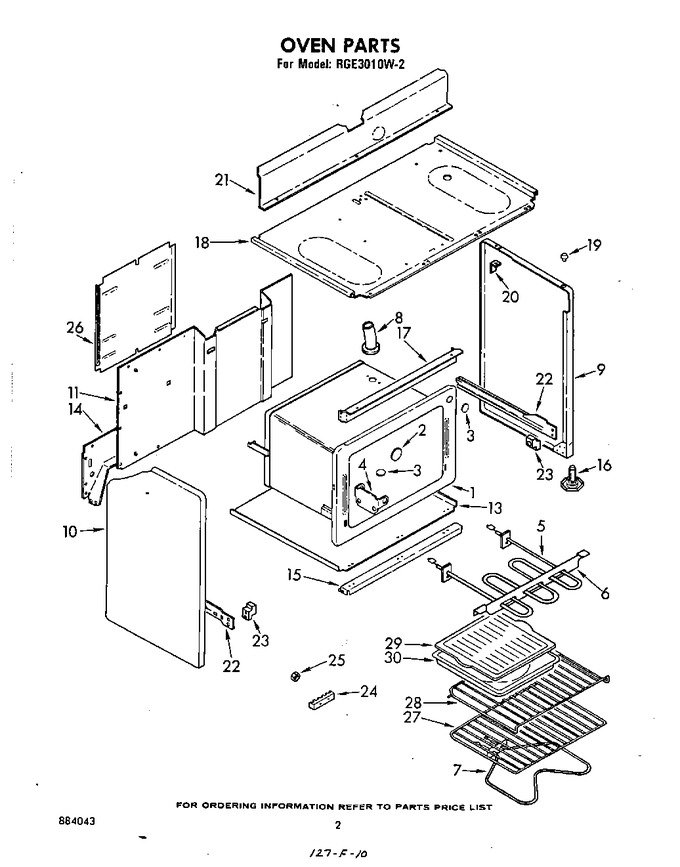

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	877807		Oven (conventional)		Appelez-nous	-
2	877808		Cover, Light Hole		Appelez-nous	-
2	486146		Screw, 10-24 X1/2 (2)				$ 12.83
3	251379		Button, Plug		Appelez-nous	-
4	486146		Screw, 10-24 X 1/2				$ 12.83
4	865959		Bracket, Thermostat Bulb		Appelez-nous	-
5	486146		Screw, 10-24 X1/2 (2)				$ 12.83
5	865934		Unit, Broil		Appelez-nous	-
6	486146		Screw, 10-24 X1/2 (2)				$ 12.83
6	866429		Hanger, Broil Unit		Appelez-nous	-
7	WP865940		Unit Bake (alternate)   (Replaces: 868963)				$ 138.75
7	WP865940		Unit Bake (alternate)   (Replaces: 868964)				$ 138.75
7	486146		Unit Bake (screw, 10-24 X 1/2 (2))				$ 12.83
8	868350		Tube, Oven Vent		Appelez-nous	-
8	241428		Screw, 10-24 X 3/8 (2)		Appelez-nous	-
9	877774		End Panel, R.h. (golden Harvest)		Appelez-nous	-
9	877770		End Panel, R.h. (white)		Appelez-nous	-
9	877772		End Panel, R.h. (coffee)		Appelez-nous	-
9	877771		End Panel, R.h. (almond)		Appelez-nous	-
9	877773		End Panel, R.h. (new Avocado)		Appelez-nous	-
10	877775		End Panel, L.h. (white)		Appelez-nous	-
10	877777		End Panel, L.h. (coffee)		Appelez-nous	-
10	877776		End Panel, L.h. (almond)		Appelez-nous	-
10	877779		End Panel, L.h. (golden Harvest)		Appelez-nous	-
10	877778		End Panel, L.h. (new Avocado)		Appelez-nous	-
11	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
11	877763		Back, Range		Appelez-nous	-
13	868087		Panel, Weldment (bottom)		Appelez-nous	-
14	681151		Screw, 10-24 X 1/2 (18)		Appelez-nous	-
14	877780		Gusset, Rear (r.h.)		Appelez-nous	-
14	877781		Gusset, Rear (l.h.)		Appelez-nous	-
15	868120		Channel, Oven Support		Appelez-nous	-
15	834649		Screw, 10-24 X 7/8 (3)		Appelez-nous	-
16	868880		Leg Leveler (4)		Appelez-nous	-
17	868121		Bracket, Cooktop		Appelez-nous	-
17	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
18	681151		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
18	877631		Burner Box		Appelez-nous	-
18	241422		Washer (3)		Appelez-nous	-
19	868363		Bumper, Cooktop (4)		Appelez-nous	-
20	868128		Gusset, Backguard (2)		Appelez-nous	-
21	681151		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
21	877782		Shield, Wiring		Appelez-nous	-
22	877686		Rail, Drawer (left Side)		Appelez-nous	-
22	877685		Rail, Drawer (right Side)		Appelez-nous	-
23	868127		Guide, Drawer (2)		Appelez-nous	-
23	834649		Screw, 10-24 X 7/8		Appelez-nous	-
24	866213		Washer, Grounding (3)		Appelez-nous	-
24	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
24	WP8203546		Terminal Block   (Replaces: 241212)			Immediately	$ 27.12
25	487836		Hex Nut, 10-32 (6)		Appelez-nous	-
26	868159		Cover Wiring, Lower		Appelez-nous	-
26	486608		Washer Flat (2)		Appelez-nous	-
26	681151		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
26	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
27	865983		Rack, Oven (1)		Appelez-nous	-
28	865984		Rack, Oven (offset) (1)		Appelez-nous	-
29	4396923		Grille, Broiler   (Replaces: 866219)			Immediately	$ 54.64
30	866218		Pan, Broiler		Appelez-nous	-
