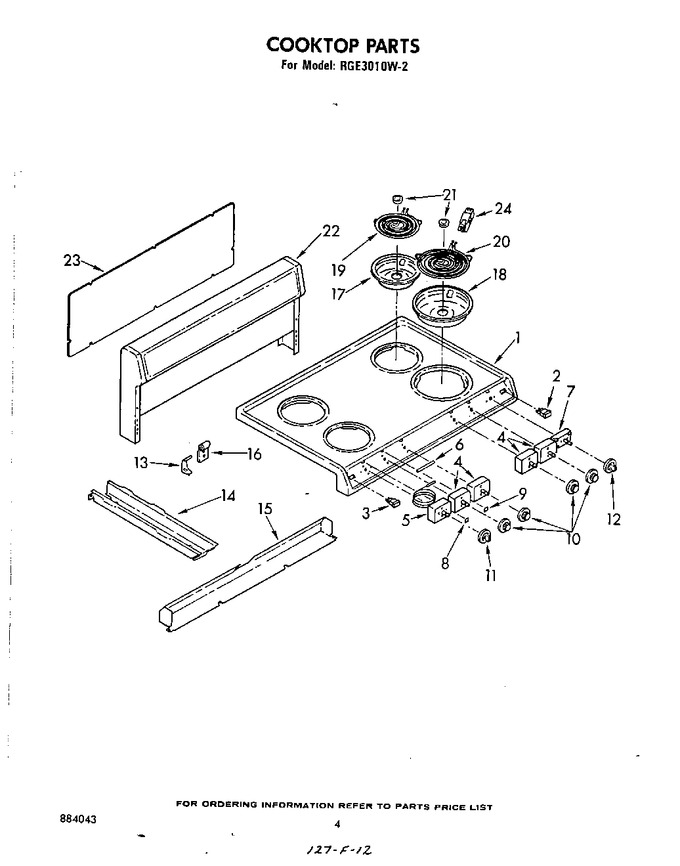

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868369		Cooktop (golden Harvest)		Appelez-nous	-
1	868371		Cooktop (coffee)		Appelez-nous	-
1	868370		Cooktop (almond)		Appelez-nous	-
1	868367		Cooktop (white)		Appelez-nous	-
1	868368		Cooktop (new Avocado)		Appelez-nous	-
2	868372		Light, Signal (125v) (surface Unit)		Appelez-nous	-
3	868373		Light, Signal (oven) (250v)		Appelez-nous	-
4	WP486579		Switch, Infinite (use W/6`` Surface Unit) (3) (xxscrew, 8-32 X 1/4 (8))   (Replaces: 866466)				$ 7.10
4	486525		Switch, Infinite (use W/6`` Surface Unit) (3) (xscrew, 8-32 X 3/16 (8))		Appelez-nous	-
4	877809		Switch, Infinite (use W/6`` Surface Unit) (3) (alternate)		Appelez-nous	-
4	866287		Switch, Infinite (use W/6`` Surface Unit) (3) (alternate)		Appelez-nous	-
4	866372		Switch, Infinite (use W/6`` Surface Unit) (3) (alternate)		Appelez-nous	-
4	866286		Switch, Infinite (use W/6`` Surface Unit) (3) (alternate (use W/8`` Surface Unit) (1))		Appelez-nous	-
4	866371		Switch, Infinite (use W/6`` Surface Unit) (3) (alternate)		Appelez-nous	-
5	486525		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
5	868374		Thermostat, Oven		Appelez-nous	-
6	834467		Sleeving, Insulating		Appelez-nous	-
7	868375		Switch, Oven Selector		Appelez-nous	-
7	486525		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
8	868376		Indicator, Oven Selector (2)		Appelez-nous	-
9	868377		Indicator, Surface Unit (4)		Appelez-nous	-
10	868378		Knob & Skirt Assembly (surface Unit) (4)		Appelez-nous	-
11	868379		Knob & Skirt Assembly (thermostat) (1)		Appelez-nous	-
12	868380		Knob & Skirt Assembly (oven Selector) (1)		Appelez-nous	-
13	681151		Cooktop, Hinge Pin (screw, 10-24 X 1/2 (2))		Appelez-nous	-
13	868365		Hinge Pin, Cooktop (l.h.)		Appelez-nous	-
13	868364		Hinge Pin, Cooktop (r.h.)		Appelez-nous	-
14	868381		Duct, Wire		Appelez-nous	-
14	868382		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
15	868383		Shield, Control		Appelez-nous	-
15	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
16	681151		Screw, 10-24 X 1/2		Appelez-nous	-
16	868137		Retainer, Hinge Pin (2)		Appelez-nous	-
17	WPW10196406		Pan, Surface Unit (6``) (3) (alternate)   (Replaces: 834753)			Immediately	$ 12.42
17	WPW10196406		Pan, Surface Unit (6``) (3) (alternate)   (Replaces: 877545)			Immediately	$ 12.42
18	W10196405RW		Pan, Surface Unit (8``) (1) (alternate)   (Replaces: 834754)			Immediately	$ 19.64
18	W10196405RW		Pan, Surface Unit (8``) (1) (alternate)   (Replaces: 877546)			Immediately	$ 19.64
19	WP660532		Surface Unit (6``) (3) (alternate (includes Illus. 21))   (Replaces: 866397)			Immediately	$ 45.10
19	WP660532		Surface Unit (6``) (3) (alternate)   (Replaces: 868590)			Immediately	$ 45.10
20	WP660533		Surface Unit (8``) (1) (alternate (includes Illus. 21))   (Replaces: 866445)			Immediately	$ 40.21
20	WP660533		Surface Unit (8``) (1) (alternate)   (Replaces: 868591)			Immediately	$ 40.21
21	868522		Medallion (4)		Appelez-nous	-
22	868385		Backguard (new Avocado)		Appelez-nous	-
22	868386		Backguard (golden Harvest)		Appelez-nous	-
22	868387		Backguard (almond)		Appelez-nous	-
22	868388		Backguard (coffee)		Appelez-nous	-
22	681151		Backguard (screw, 10-24 X 1/2 (2))		Appelez-nous	-
22	868384		Backguard (white)		Appelez-nous	-
23	868396		Cover, Backguard		Appelez-nous	-
23	681151		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
24	884043		List, Parts		Appelez-nous	-
24	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
24	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
24	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
24	978883		Almond (uncut)		Appelez-nous	-
24	261889		New Avocado (uncut)		Appelez-nous	-
24	261887		Coffee (uncut)		Appelez-nous	-
24	261891		Harvest Gold (uncut)		Appelez-nous	-
24	799351		Thinner (1 Gal.)		Appelez-nous	-
24	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
24	261810		Touch-up, Oven (1/2 Pt.)		Appelez-nous	-
24	261582		Grease		Appelez-nous	-
24	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 54.98
24	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 54.98
24	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
24	865621		Instructions, Installation		Appelez-nous	-
24	868573		Guide, Use & Care		Appelez-nous	-
24	308500		Book, Cooking Guide		Appelez-nous	-
24	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
24	330031		Receptacle   (Replaces: 877632)			Immediately	$ 17.93
24	WP486754		Screw, 6-32 X 5/16 (4)   (Replaces: 680406)				$ 7.21
24	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
24	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
24	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
24	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
24	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
24	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
24	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
24	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
24	242831		Wire (14 Ga. 200 C Red)				$ 342.23
24	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
24	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
24	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
24	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
24	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
24	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
24	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
24	261888		New Avocado		Appelez-nous	-
24	261886		Coffee		Appelez-nous	-
24	261890		Harvest Gold		Appelez-nous	-
24	285006		Paint, Spray 13 Oz. (black)				$ 53.90
24	350942		Primer (white)   (Replaces: 206922)				$ 84.73
24	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
24	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
