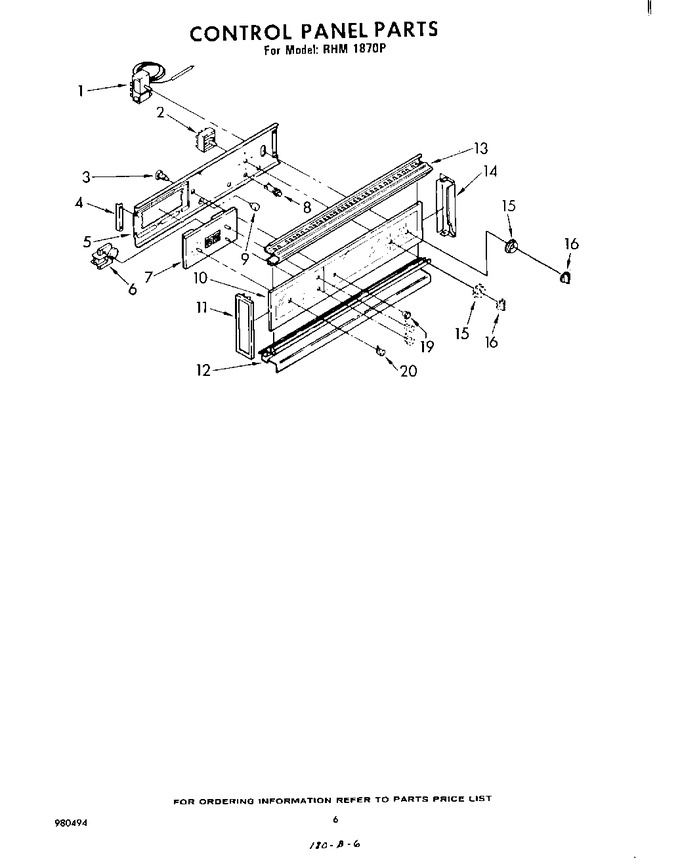

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868954		Thermostat		Appelez-nous	-
1	486525		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
2	868048		Switch, Selector (bake/clean)		Appelez-nous	-
2	486525		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
3	866138		Switch, Push (oven Light)		Appelez-nous	-
3	98754		Nut, 3/8-27 (2)		Appelez-nous	-
4	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
4	866395		Support, Control Bracket (2)		Appelez-nous	-
5	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
5	868402		Panel, Control		Appelez-nous	-
6	866403		Motor, Timer		Appelez-nous	-
7	866402		Timer, Digital (complete) (includes Illus. 6 & 20)		Appelez-nous	-
7	487836		Nut, 10-32 (2)		Appelez-nous	-
8	866448		Light, Pilot (clean/lock) (2)		Appelez-nous	-
8	866401		Light, Pilot Oven		Appelez-nous	-
9	834956		Bumper (2)		Appelez-nous	-
10	868854		Glass, Control Panel		Appelez-nous	-
11	866409		End Cap (l.h.)		Appelez-nous	-
11	486978		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
12	868531		Base, Control Panel		Appelez-nous	-
12	595119		Screw, 10-24 X 5/8 (6)		Appelez-nous	-
13	595119		Screw, 10-24 X 5/8 (5)		Appelez-nous	-
13	868339		Top, Control Panel		Appelez-nous	-
14	486978		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
14	866408		End Cap (r.h.)		Appelez-nous	-
15	866101		Bezel, Knob (2)		Appelez-nous	-
16	866098		Knob, Control (2)		Appelez-nous	-
19	866053		Bezel, Light Switch		Appelez-nous	-
20	241383		Knob, Timer (3)		Appelez-nous	-
