SELECT A DIAGRAM

02 - Oven


03 - Latch Motor And Upper Body


04 - Control Panel


05 - Door

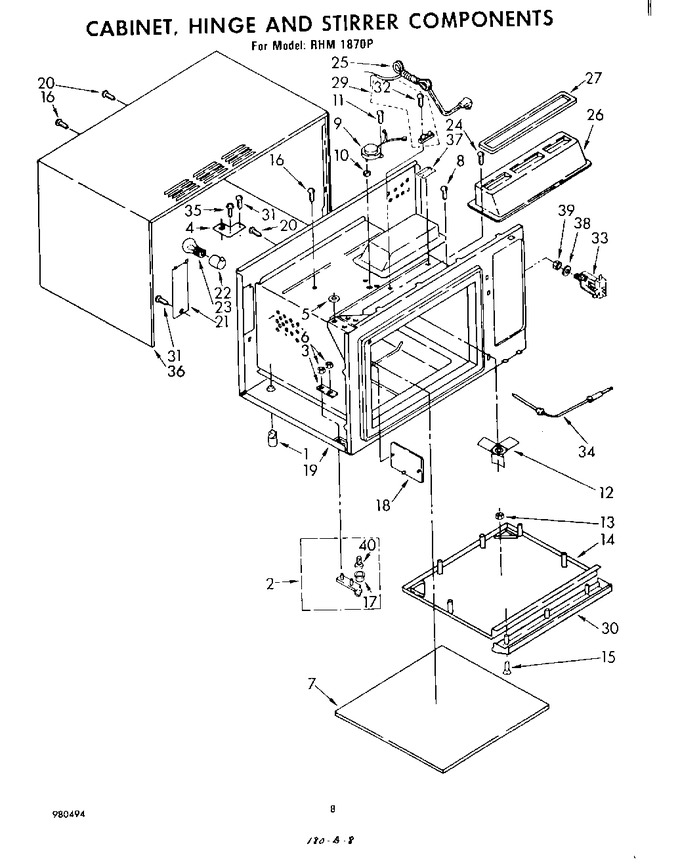

06 - Cabinet, Hinge And Stirrer


07 - Control Panel, Door And Latch


08 - Magnetron And Airflow


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307540		Foot, Mounting		Appelez-nous	-
2	328126		Hinge, Door (top)		Appelez-nous	-
2	328127		Hinge, Door (bottom)		Appelez-nous	-
3	307527		Plate, Hinge		Appelez-nous	-
4	308417		Bracket, Lamp Mounting		Appelez-nous	-
5	307539		Washer		Appelez-nous	-
6	307555		Xnut, Hex (1/4-20) (4)		Appelez-nous	-
7	309145		Base, Ceramic (install W/silastic No. 482338)		Appelez-nous	-
8	254217		Screw, 10a X 3/8		Appelez-nous	-
9	309639		Motor, Stirrer		Appelez-nous	-
10	307651		Gasket, Stirrer Motor		Appelez-nous	-
11	246131		Screw, 6a X 3/8		Appelez-nous	-
12	309368		Stirrer, 3-blade		Appelez-nous	-
13	307555		Nut, Hex (1/4-20)		Appelez-nous	-
14	307511		Cover, Stirrer		Appelez-nous	-
15	308554		Screw, 10 X 2		Appelez-nous	-
16	WP308685		Screw, 10a X 1/2   (Replaces: 309234)			Immediately	$ 7.08
17	309628		Bushing		Appelez-nous	-
18	307516		Cover, Light		Appelez-nous	-
20	307748		Screw, 10a X 1/2		Appelez-nous	-
21	307512		Cover, Lamp		Appelez-nous	-
22	307519		Socket, Snap-in		Appelez-nous	-
23	8009		Bulb, Oven Light   (Replaces: 247591)			Immediately	$ 17.51
24	WP487353		Screw, 6-18 X 3/8   (Replaces: 307842)				$ 7.16
25	307689		Cord, Power		Appelez-nous	-
26	307520		Baffle, Air Exhaust		Appelez-nous	-
27	WP854334		Seal, Air Vent   (Replaces: 307547)				$ 12.55
29	309279		Fuse, Thermal		Appelez-nous	-
30	307619		Cover, Front		Appelez-nous	-
31	254217		Screw, 10a X 3/8		Appelez-nous	-
32	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 10.68
33	309654		Jack, Probe		Appelez-nous	-
34	308512		Meat Probe		Appelez-nous	-
35	342043		Screw		Appelez-nous	-
36	309187		Wrapper, Cabinet		Appelez-nous	-
37	308853		Fastener, Slide		Appelez-nous	-
38	309769		Washer		Appelez-nous	-
39	309768		Nut		Appelez-nous	-
40	309597		Guide, Use & Care (microwave)		Appelez-nous	-
40	309981		Tech Sheet (service Information)		Appelez-nous	-
40	310847		Cookbook (microwave)		Appelez-nous	-
40	307843		Instructions, Installation		Appelez-nous	-
40	309600		Booklet, Meat Probe		Appelez-nous	-
40	980494		List, Repair Parts		Appelez-nous	-
40	308785		Pin, Hinge		Appelez-nous	-
40	253906		Wire, 10 Ga. (red) (25 Ft.)		Appelez-nous	-
40	253904		Wire, 10 Ga. (black) (25 Ft.)		Appelez-nous	-
40	253886		Wire, 14 Ga. (green) (25 Ft.)		Appelez-nous	-
40	253883		Wire, 14 Ga. (red) (25 Ft.)		Appelez-nous	-
40	253881		Wire, 14 Ga. (white) (25 Ft.)		Appelez-nous	-
40	253893		Wire, 14 Ga. (blue) (25 Ft.)		Appelez-nous	-
40	253894		Wire, 14 Ga. (orange) (25 Ft.)		Appelez-nous	-
40	253897		Wire, 16 Ga. (black) (25 Ft.)		Appelez-nous	-
40	253900		Wire, 16 Ga. (red) (25 Ft.)		Appelez-nous	-
40	253901		Wire, 16 Ga. (white) (25 Ft.)		Appelez-nous	-
40	253879		Wire, 18 Ga. (red) (25 Ft.)		Appelez-nous	-
40	253895		Wire, 18 Ga. (black) (25 Ft.)		Appelez-nous	-
40	253896		Wire, 18 Ga. (white) (25 Ft.)		Appelez-nous	-
40	WP261869		Paint, Touch-up (1/2oz.) (citrine White)   (Replaces: 261869)				$ 25.05
40	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
40	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 73.65

    View Diagram in Separate Window       Print Part List
