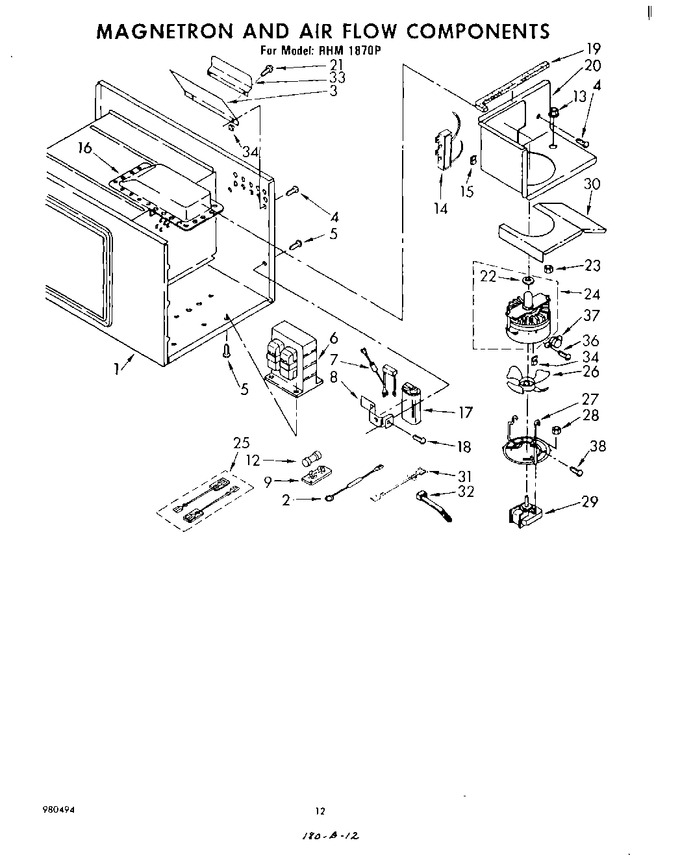

08 - Magnetron And Airflow
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 328185 | Varistor Assembly |
|
- | |||||
| 3 | 307635 | Deflector, Air |
|
- | |||||
| 4 | 254217 | Screw, 8a X 3/8 |
|
- | |||||
| 5 | 258857 | Screw, 10a X 3/8 |
|
- | |||||
| 6 | 307676 | Transformer |
|
- | |||||
| 7 | 328057 | Rectifier, High Voltage (includes Illus. 15) |
|
- | |||||
| 8 | 308572 | Bracket, Capacitor |
|
- | |||||
| 9 | 309795 | Block, Fuse |
|
- | |||||
| 12 | WPW10017410 | Fuse (Replaces: 309796) |
|
Immediately | $ 20.01 | ||||
| 13 | 308410 | Bushing, Wire |
|
- | |||||
| 14 | 309623 | Relay, Reed |
|
- | |||||
| 15 | 98084 | Clip (1) |
|
- | |||||
| 17 | 309587 | Capacitor |
|
- | |||||
| 18 | 258857 | Screw, 10-32 X 1/2 |
|
- | |||||
| 19 | WP854334 | Seal, Air Vent (Replaces: 307618) |
|
$ 12.55 | |||||
| 20 | 307529 | Duct, Cooling Air |
|
- | |||||
| 21 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 22 | 307849 | Gasket, Magnetron (use W/litton Magnetron) |
|
- | |||||
| 22 | 310302 | Gasket, Magnetron (use W/panasonic Magnetron) |
|
- | |||||
| 23 | 310300 | Nut, Mounting (nut, 5mm-0.8 Flange (2) (use W/panasonic Magnetron)) |
|
- | |||||
| 23 | WP112432 | Nut, Mounting (nut, 10-32 Hex (2) (use W/litton Magnetron)) (Replaces: 112432) |
|
$ 7.77 | |||||
| 24 | 832805 | Magnetron Kit, Panasonic |
|
- | |||||
| 25 | 311144 | Wire, High Voltage Magnetron (2) (use W/panasonic Magnetron) |
|
- | |||||
| 25 | 261945 | Wire, High Voltage Magnetron (2) (use W/litton Magnetron) |
|
- | |||||
| 26 | 307535 | Blade, Fan |
|
- | |||||
| 27 | 307534 | Mount, Fan Motor |
|
- | |||||
| 28 | 309486 | Nut, Hex (6-32) |
|
- | |||||
| 29 | 307565 | Motor, Fan |
|
- | |||||
| 30 | 310419 | Shield, Magnetron (use W/panasonic Magnetron) |
|
- | |||||
| 31 | 309084 | Wire, High Voltage (capacitor) |
|
- | |||||
| 32 | WPW10339879 | Tie Cable (Replaces: 309330) |
|
$ 7.47 | |||||
| 33 | 308219 | Deflector, Exhaust |
|
- | |||||
| 34 | 338177 | Clip |
|
- | |||||
| 36 | 246131 | Screw, 6a X 3/8 |
|
- | |||||
| 37 | 307564 | Thermostat |
|
- | |||||
| 38 | WP90767 | Screw, 8a X 3/8 (hex Head) (Replaces: 90767) |
|
Immediately | $ 7.43 |
