SELECT A DIAGRAM

02 - Oven


03 - Oven Door

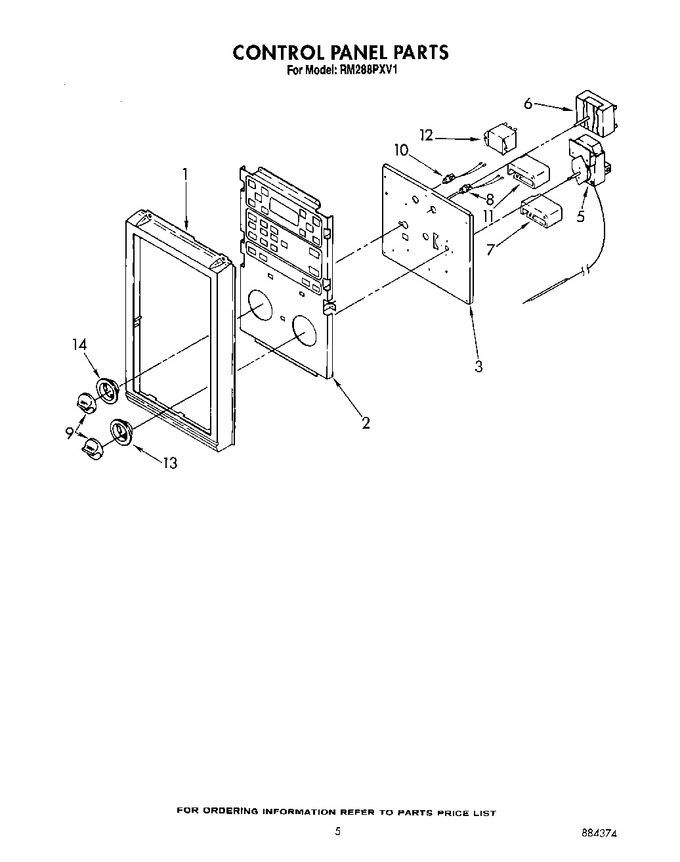

04 - Control Panel, Lit/optional


05 - Magnetron And Air Flow


06 - Microwave And Stirrer


07 - Microwave Door


08 - Microwave Cabinet


09 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148092		Frame, Control Panel		Appelez-nous	-
2	313818		Screw (6)		Appelez-nous	-
2	661210		Module, Control		Appelez-nous	-
3	313818		Screw (4)		Appelez-nous	-
3	3147282		Bracket, Control (mounting)		Appelez-nous	-
5	3148931		Thermostat		Appelez-nous	-
5	WP313808		Screw (2)   (Replaces: 311932)				$ 7.47
6	3147235		Switch, Selector		Appelez-nous	-
6	308119		Screw (2)		Appelez-nous	-
7	314215		Screw		Appelez-nous	-
7	314210		Switch, Bake (4)		Appelez-nous	-
8	3147517		Light, Indicator (2)		Appelez-nous	-
8	WP693995		Washer (4)   (Replaces: 693995)			Immediately	$ 6.80
9	WP3150371		Knob, Control (2)   (Replaces: 3150371)				$ 20.38
10	313818		Screw (4)		Appelez-nous	-
10	312713		Screw		Appelez-nous	-
10	3149034		Light, Indicator		Appelez-nous	-
11	314209		Switch, Broil		Appelez-nous	-
11	312006		Screw (2)		Appelez-nous	-
12	314125		Relay, Power		Appelez-nous	-
12	246131		Screw (2)		Appelez-nous	-
13	311073		Escutcheon, Thermostat		Appelez-nous	-
13	254225		Screw,		Appelez-nous	-
14	254225		Screw,		Appelez-nous	-
14	WP311068		Escutcheon, Selector   (Replaces: 311068)				$ 52.22
14	346893		Screw		Appelez-nous	-
	LIT3147287		Installation Instructions		Appelez-nous	-
	LIT3147575		Label, Guide		Appelez-nous	-
	LIT3149026		Tech Sheet		Appelez-nous	-
	LIT3147571		Label, Guide		Appelez-nous	-
	LIT884374		Repair Parts List		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT311895		Cookbook (microwave)		Appelez-nous	-
	LIT312899		Use & Care Guide (microwave)		Appelez-nous	-
	LIT312901		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
