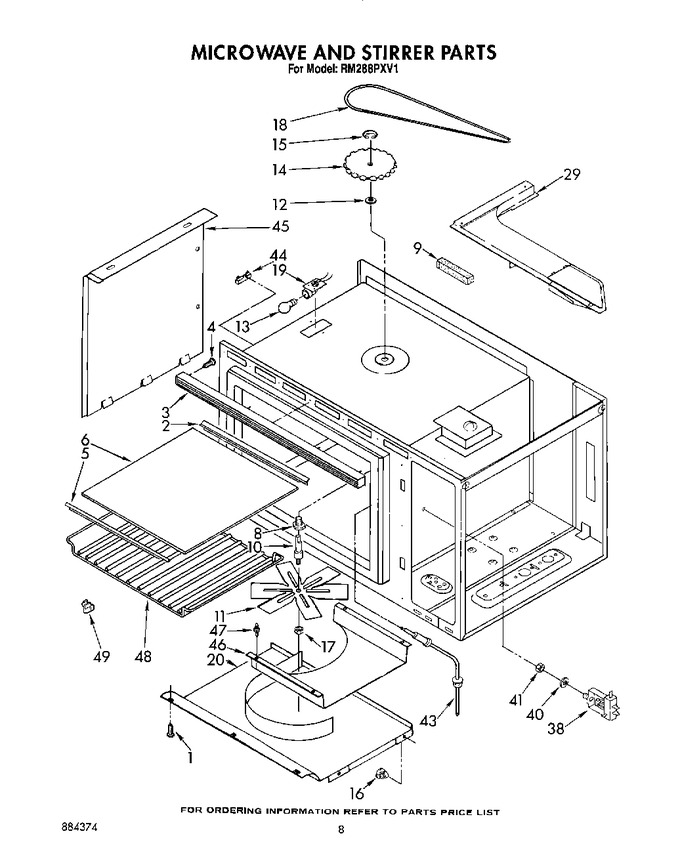

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313816 | Screw, |
|
- | |||||
| 2 | 313615 | Trim, Shelf (rear) |
|
- | |||||
| 3 | 3149297 | Deflector, Air |
|
- | |||||
| 4 | 3150025 | Screw (3) |
|
- | |||||
| 5 | 313614 | Trim, Shelf (front) |
|
- | |||||
| 6 | 313639 | Shelf, Glass |
|
- | |||||
| 7 | 312713 | Screw, 8-32 X 3/8 |
|
- | |||||
| 8 | 312023 | Bushing, Stirrer |
|
- | |||||
| 9 | 3147599 | Seal, Foam |
|
- | |||||
| 10 | 312026 | Shaft, Stirrer |
|
- | |||||
| 11 | 313595 | Stirrer Blade |
|
- | |||||
| 12 | 312025 | Washer, Nylon |
|
- | |||||
| 13 | WP3395618 | Bulb, Oven (Replaces: 313969) |
|
Immediately | $ 74.89 | ||||
| 14 | 311923 | Pulley, Stirrer Blade |
|
- | |||||
| 15 | 311999 | ``e`` Ring |
|
- | |||||
| 16 | 313740 | Fastener (4) |
|
- | |||||
| 17 | WP487939 | Nut, Standard Hex 1/4-20 (Replaces: 311721) |
|
$ 7.76 | |||||
| 18 | WP313646 | Belt, Drive (Replaces: 313646) |
|
$ 79.86 | |||||
| 19 | 330514 | Socket, Light |
|
- | |||||
| 19 | 312713 | Screw (3) |
|
- | |||||
| 20 | 313816 | Screw, |
|
- | |||||
| 20 | 313563 | Stirrer Cover |
|
- | |||||
| 29 | 3147003 | Baffle, Air |
|
- | |||||
| 29 | 310423 | Fastener |
|
- | |||||
| 38 | 661209 | Probe Jack |
|
- | |||||
| 40 | 313105 | Washer Probe |
|
- | |||||
| 41 | 313104 | Nut |
|
- | |||||
| 43 | 313527 | Probe, Temperature |
|
- | |||||
| 44 | 312713 | Screw |
|
- | |||||
| 44 | 313855 | Fuse, Thermal |
|
- | |||||
| 45 | 3147004 | Cover, Side |
|
- | |||||
| 45 | WP488729 | Screw (4) (Replaces: 313638) |
|
Immediately | $ 7.45 | ||||
| 46 | 313735 | Plate, Tuning |
|
- | |||||
| 47 | 313739 | Support (4) |
|
- | |||||
| 48 | 313663 | Rack, Wire |
|
- | |||||
| 49 | WP3149478 | Support Rack (Replaces: 313653) |
|
$ 9.07 |
