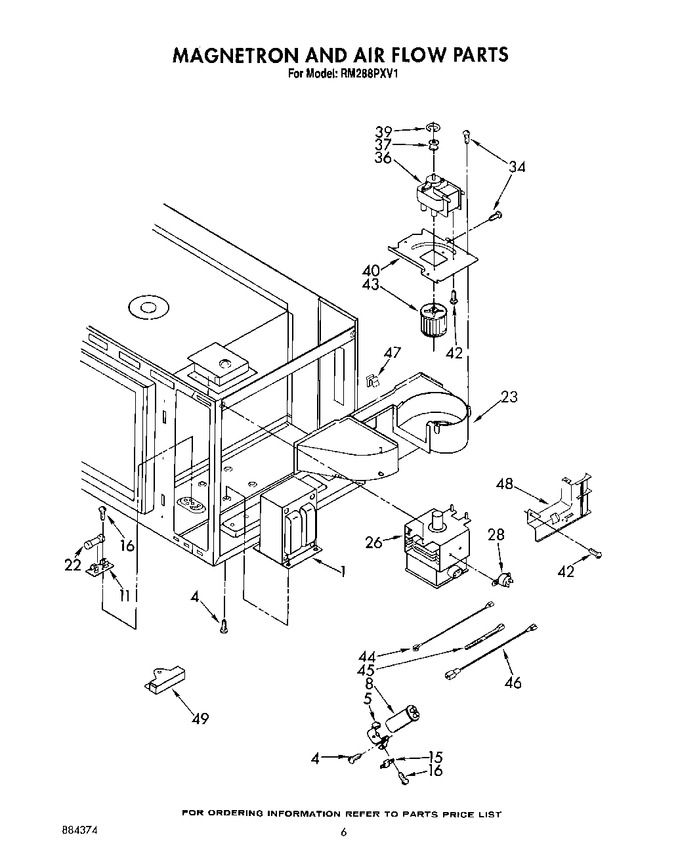

05 - Magnetron And Air Flow


06 - Microwave And Stirrer


07 - Microwave Door


08 - Microwave Cabinet


09 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3147272		Transformer		Appelez-nous	-
4	312185		Screw (10)		Appelez-nous	-
5	312619		Bracket, Capacitor		Appelez-nous	-
8	661004		Capacitor		Appelez-nous	-
11	4454949		Block, Fuse   (Replaces: 314121)				$ 85.72
15	313830		Rectifier, High Voltage		Appelez-nous	-
16	312713		Screw		Appelez-nous	-
22	WPW10017410		Fuse (20 Amp)   (Replaces: 309796)			Immediately	$ 20.01
23	313578		Air Duct (horizontal)		Appelez-nous	-
26	660595		Magnetron		Appelez-nous	-
28	661165		Thermal Protector		Appelez-nous	-
28	312782		Screw,		Appelez-nous	-
34	312713		Screw		Appelez-nous	-
34	346893		Screw		Appelez-nous	-
36	313641		Motor, Fan		Appelez-nous	-
37	311922		Pulley, Motor		Appelez-nous	-
39	311999		``e`` Ring		Appelez-nous	-
40	313601		Bracket, Motor		Appelez-nous	-
42	WP486579		Screw (4)   (Replaces: 311865)				$ 7.10
43	3147223		Wheel, Blower		Appelez-nous	-
44	313130		Jumper, High Voltage Red (6-5/16``)		Appelez-nous	-
45	WPW10339879		Cable Tie (3)   (Replaces: 309330)				$ 7.47
46	3147863		High Voltage Lead, Gray 7-11/16`` (2)		Appelez-nous	-
47	311311		Clip		Appelez-nous	-
48	3147262		Extension, Air Duct		Appelez-nous	-
49	313855		Fuse, Thermal		Appelez-nous	-
