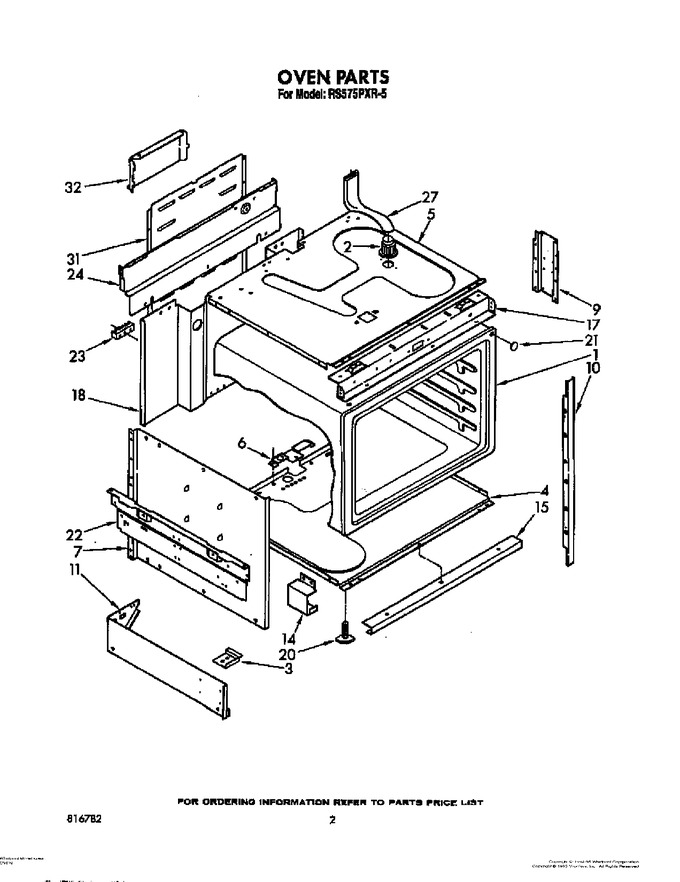

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	816791		Oven, Self Clean		Appelez-nous	-
2	241428		Screw, 10-24 X 3/8 (2)		Appelez-nous	-
2	877898		Vent Tube		Appelez-nous	-
4	681151		Screw, 10-24 X 1/2 (5)		Appelez-nous	-
4	816728		Retainer, Insulation (bottom)		Appelez-nous	-
5	877708		Retainer, Insulation (top)		Appelez-nous	-
5	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
6	816102		Bracket, Conduit		Appelez-nous	-
7	877721		Retainer, Insulation Side (2)		Appelez-nous	-
7	681151		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
9	681151		Screw, 10-24 X 1/2 (10)		Appelez-nous	-
9	877899		Support, Front (2)		Appelez-nous	-
10	877723		Trim, Oven (front) (2)		Appelez-nous	-
11	877724		Side Panel (lower) (right Side)		Appelez-nous	-
11	681151		Side Panel (lower) (screw, 10-24 X 1/2 (6))		Appelez-nous	-
11	877725		Side Panel (lower) (left Side)		Appelez-nous	-
14	877709		Shield, Toe (2)		Appelez-nous	-
14	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
15	834649		Screw, 10-24 X 7/8		Appelez-nous	-
15	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
15	877726		Channel, Oven Support (lower)		Appelez-nous	-
17	681151		Screw, 10-24 X 1/2 (5)		Appelez-nous	-
17	877522		Bracket, Cooktop		Appelez-nous	-
18	680363		Screw,10-24 X 1/2		Appelez-nous	-
18	816103		Back, Range (lower)		Appelez-nous	-
18	681151		Screw, 10-24 X 1/2 (14)		Appelez-nous	-
18	487836		Nut, Hex (10-32) (3)		Appelez-nous	-
20	868880		Screw, Leveling (4)		Appelez-nous	-
21	251379		Plug Button (light Switch Hole)		Appelez-nous	-
22	681151		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
22	877711		Panel Side, Upper (2)		Appelez-nous	-
23	487836		Nut, Hex 10-32 (6)		Appelez-nous	-
23	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
23	WP8203546		Block, Terminal (main)   (Replaces: 241212)			Immediately	$ 27.12
24	877728		Back, Range (upper)		Appelez-nous	-
24	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
27	868829		Tube, Oven Vent		Appelez-nous	-
27	681151		Screw, 10-24 X 1/2		Appelez-nous	-
31	486608		Washer Flat (3)		Appelez-nous	-
31	816109		Cover, Wiring		Appelez-nous	-
31	681151		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
32	816104		Deflector, Air		Appelez-nous	-
