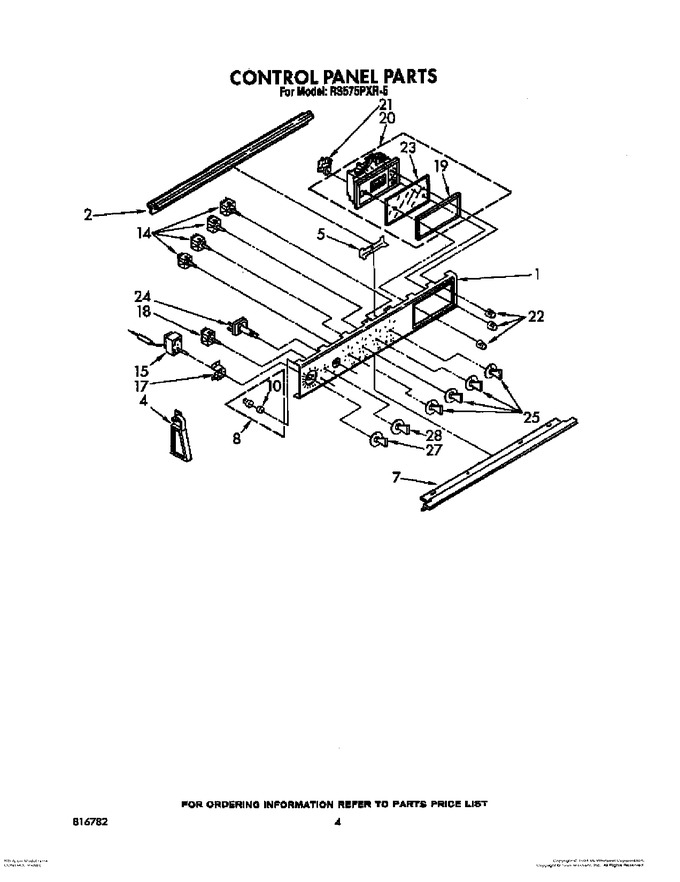

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 877712 | Panel, Control |
|
- | |||||
| 2 | 868820 | Rail, Control Panel (bottom) |
|
- | |||||
| 2 | 681151 | Rail, Control Panel (screw, 10-24 X 1/2 (2)) |
|
- | |||||
| 2 | 868819 | Rail, Control Panel (top) |
|
- | |||||
| 4 | 816034 | End Cap R.h. |
|
- | |||||
| 4 | W11693756 | Screw, 8-18 X 1/2 (4) (Replaces: 877752) |
|
Immediately | $ 13.28 | ||||
| 4 | WP965173 | Screw, 8-15 X 3/8 (2) (Replaces: 487521) |
|
Immediately | $ 10.68 | ||||
| 4 | 816035 | End Cap L.h. |
|
- | |||||
| 5 | 868823 | Bracket, Control Panel (upper) |
|
- | |||||
| 5 | 595135 | Bracket, Control Panel (screw, 8-32 X 3/8 (2)) |
|
- | |||||
| 5 | 868824 | Bracket, Control Panel (lower) |
|
- | |||||
| 7 | W11693756 | Screw, 8-18 X 1/2 (4) (Replaces: 877752) |
|
Immediately | $ 13.28 | ||||
| 7 | 877699 | Washer, Flat (4) |
|
- | |||||
| 7 | 877698 | Deflector, Heat |
|
- | |||||
| 8 | 877900 | Light, Indicator (lock, Oven) |
|
- | |||||
| 8 | 877865 | Light, Indicator (125v) (right Module, Left Module, Oven Clean) |
|
- | |||||
| 10 | 868934 | Lens, Indicator Light (5) |
|
- | |||||
| 14 | W10900107 | Switch, Infinite (4) (alternate) (Replaces: 877528) |
|
Immediately | $ 51.87 | ||||
| 14 | W10900107 | Switch, Infinite (4) (alternate) (Replaces: 877713) |
|
Immediately | $ 51.87 | ||||
| 14 | 877919 | Switch, Infinite (4) (screw, 8-32 X 3/16 (8)) |
|
- | |||||
| 15 | 877527 | Thermostat |
|
- | |||||
| 17 | 877919 | Screw, 8-32 X 3/16 (4) |
|
- | |||||
| 17 | 816078 | Bracket, Thermostat Mounting |
|
- | |||||
| 18 | 877919 | Screw, 8-32 X 3/16 (2) |
|
- | |||||
| 18 | 877901 | Switch, Oven Selector |
|
- | |||||
| 19 | 834764 | Bezel, Clock |
|
- | |||||
| 20 | 816077 | Timer, Range (includes Illus. 21 & 22) |
|
- | |||||
| 21 | 866403 | Motor, Timer |
|
- | |||||
| 22 | 255853 | Knob, Timer (3) |
|
- | |||||
| 23 | 868843 | Glass, Clock |
|
- | |||||
| 24 | 816036 | Nut, Knurled 3/8-27 |
|
- | |||||
| 24 | 866148 | Switch, Oven Light |
|
- | |||||
| 24 | 98754 | Nut, Hex Flat 3/8-27 |
|
- | |||||
| 25 | 877924 | Control Knob (4) (surface Unit) |
|
- | |||||
| 27 | 868997 | Knob, Thermostat |
|
- | |||||
| 28 | 868998 | Knob, Oven Selector |
|
- |
