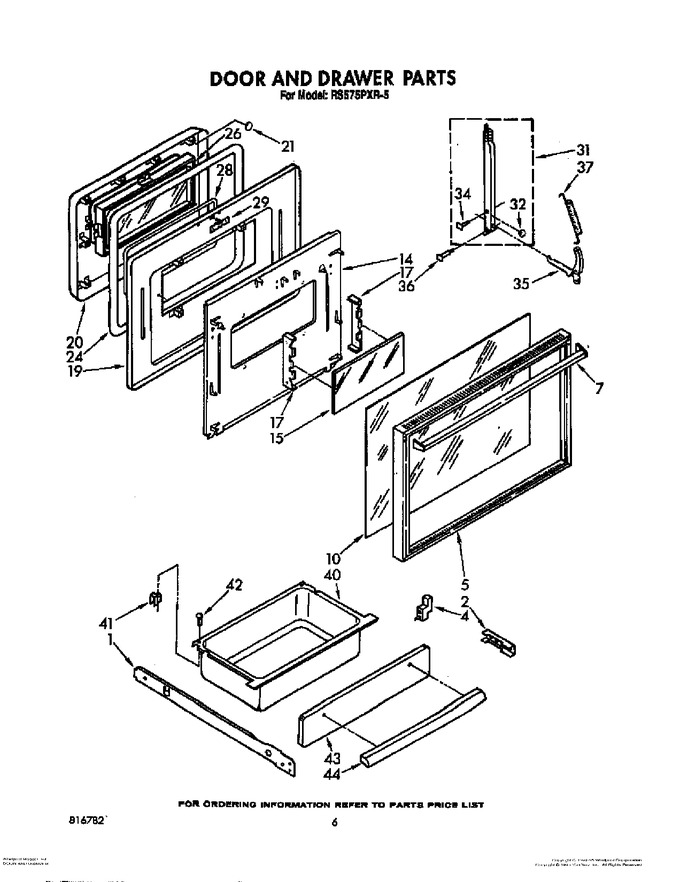

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	816032		Rail, Drawer (left Side)		Appelez-nous	-
1	681151		Rail, Drawer (screw, 10-24 X 1/2 (2))		Appelez-nous	-
1	816031		Rail, Drawer (right Side)		Appelez-nous	-
2	877727		Spacer, Drawer Rail (2)		Appelez-nous	-
4	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
4	868127		Guide, Drawer Front (2)		Appelez-nous	-
5	868430		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
5	816111		Frame, Oven Door		Appelez-nous	-
7	877906		Handle, Door		Appelez-nous	-
7	877889		Screw, 6-32 X 1/2 (4)		Appelez-nous	-
10	877907		Glass, Outer (black)		Appelez-nous	-
14	816797		Panel, Airwash		Appelez-nous	-
14	340184		Screw, 10-16 X 1-1/2   (Replaces: 877702)				$ 12.70
15	816794		Glass, Inner		Appelez-nous	-
17	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
17	868503		Retainer, Glass (2)		Appelez-nous	-
19	816795		Liner, Oven Door		Appelez-nous	-
19	681151		Screw, 10-24 X 1/2 (9)		Appelez-nous	-
20	816796		Baffle		Appelez-nous	-
21	142001		Button, Plug 3/16 (2)		Appelez-nous	-
24	877590		Seal, Oven Door		Appelez-nous	-
26	877505		Window		Appelez-nous	-
28	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
28	877506		Seal, Window		Appelez-nous	-
29	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
29	816058		Washer (2)		Appelez-nous	-
29	877507		Strike		Appelez-nous	-
31	865972		Channel, Hinge (2)		Appelez-nous	-
31	868430		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
32	816058		Washer (2)		Appelez-nous	-
32	834471		Roller,\ Door\ Stop (2)		Appelez-nous	-
34	241423		Rivet, Square Head (2)		Appelez-nous	-
35	865640		Arm Assembly (2)		Appelez-nous	-
36	877884		Pin, Hinge (2)		Appelez-nous	-
37	241312		Spring, Door (2)		Appelez-nous	-
40	877716		Drawer		Appelez-nous	-
40	441256		Nut, Hex 10-24 (2)		Appelez-nous	-
41	877717		Guide, Drawer (rear) (2)		Appelez-nous	-
42	877903		Screw, 10-24 X 3/8 (2)		Appelez-nous	-
43	877734		Panel, Drawer Black		Appelez-nous	-
44	877903		Screw, 10-32 X 3/8 (4)		Appelez-nous	-
44	877718		Handle, Drawer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
