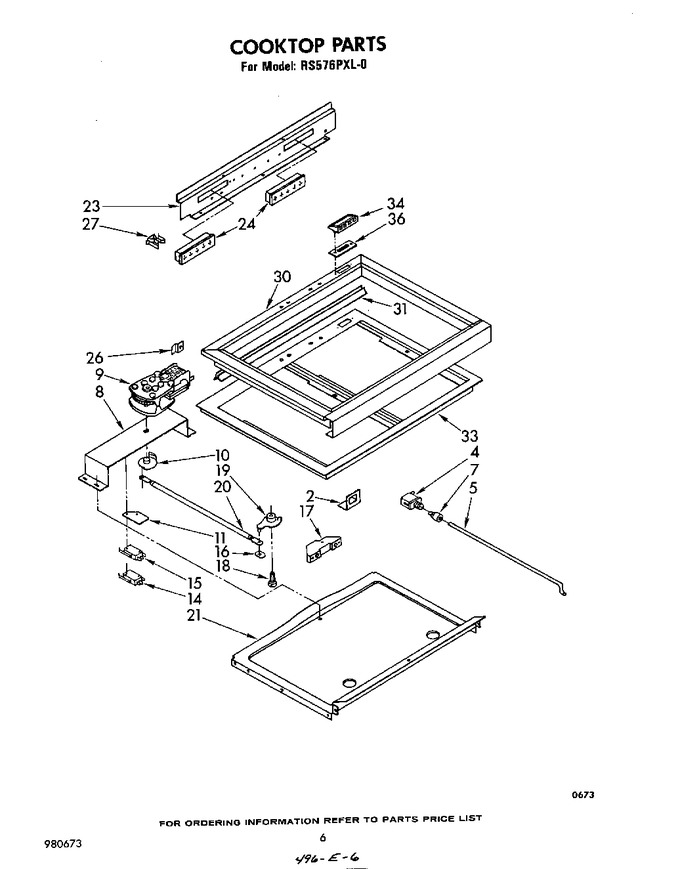

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	865961		Bracket, Door Latch Switch		Appelez-nous	-
2	681151		Screw, 10-24 X 1/2		Appelez-nous	-
4	WP8283288		Switch, Oven Light   (Replaces: 865677)			Immediately	$ 104.24
5	877523		Push Rod, Switch		Appelez-nous	-
7	877562		Rod End, Switch		Appelez-nous	-
8	868982		Support, Latch Motor		Appelez-nous	-
8	681151		Screw, 10-24 X 1/2		Appelez-nous	-
9	273225		Motor, Door Latch (screw, 8-32 X 5/16 (2))		Appelez-nous	-
9	834849		Motor, Door Latch (alternate)		Appelez-nous	-
9	868983		Motor, Door Latch (alternate)		Appelez-nous	-
9	877619		Motor, Door Latch (alternate)		Appelez-nous	-
10	455105		Cam, Door Latch (pin, Spring)		Appelez-nous	-
10	834483		Cam, Door Latch (alternate)		Appelez-nous	-
10	877629		Cam, Door Latch (alternate)		Appelez-nous	-
11	834905		Insulator, Limit Switch (2)		Appelez-nous	-
14	834906		Switch Limit (lower) (alternate)		Appelez-nous	-
14	868985		Switch Limit, Lower (alternate)		Appelez-nous	-
14	868986		Switch Limit, Lower (alternate)		Appelez-nous	-
15	834903		Switch Limit (upper) (screw, 4-40 X 1-1/4 (2))		Appelez-nous	-
15	868988		Switch Limit (upper) (alternate)		Appelez-nous	-
15	868280		Switch Limit (upper) (alternate)		Appelez-nous	-
15	868987		Switch Limit (upper) (alternate)		Appelez-nous	-
16	256158		Pushnut, 1/4		Appelez-nous	-
17	877614		Housing, Latch		Appelez-nous	-
17	241422		Washer (2)		Appelez-nous	-
17	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
18	241564		Axle, Latch		Appelez-nous	-
19	877628		Latch, Door (alternate)		Appelez-nous	-
19	834484		Latch, Door (alternate)		Appelez-nous	-
20	241547		Pushnut (3/16``) (2)		Appelez-nous	-
20	868487		Tie Bar		Appelez-nous	-
21	877530		Panel, Subtop		Appelez-nous	-
21	681151		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
23	WP486579		Screw, 8-32 X 3/16   (Replaces: 866466)				$ 7.10
23	681151		Screw, 10-24 X 1/2		Appelez-nous	-
23	868833		Shield, Wire		Appelez-nous	-
24	868420		Receptacle, Porcelain (2)		Appelez-nous	-
26	868421		Clip, Receptacle		Appelez-nous	-
26	865959		Screw, 10-24 X 1/4 (4)		Appelez-nous	-
27	868422		Terminal Female		Appelez-nous	-
30	877714		Frame, Cooktop		Appelez-nous	-
31	866454		Tape, Foam (96``)		Appelez-nous	-
33	868430		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
33	877534		Cooktop, Modular		Appelez-nous	-
34	877731		Gasket, Vent Tube		Appelez-nous	-
36	877733		Clip, Retainer (2)		Appelez-nous	-
36	877732		Cover, Vent		Appelez-nous	-
