Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 242885 Grill Kit, Complete Appelez-nous -
2 877548 Pan, Grill Appelez-nous -
3 877549 Rack, Grill (2) Appelez-nous -
4 877541 Unit, Dual (2200w) Appelez-nous -
6 868878 Pushnut, 1/4`` Appelez-nous -
6 868437 Receptacle, Male Appelez-nous -
8 877542 Frame, Basket (2) Appelez-nous -
9 877543 Handle, Basket (2) Appelez-nous -
9 868430 Screw, 10-24 X 1/2 (2) Appelez-nous -
10 868460 Rocks, Lava (4 Lbs.) Appelez-nous -
11 877609 Screen, Basket (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

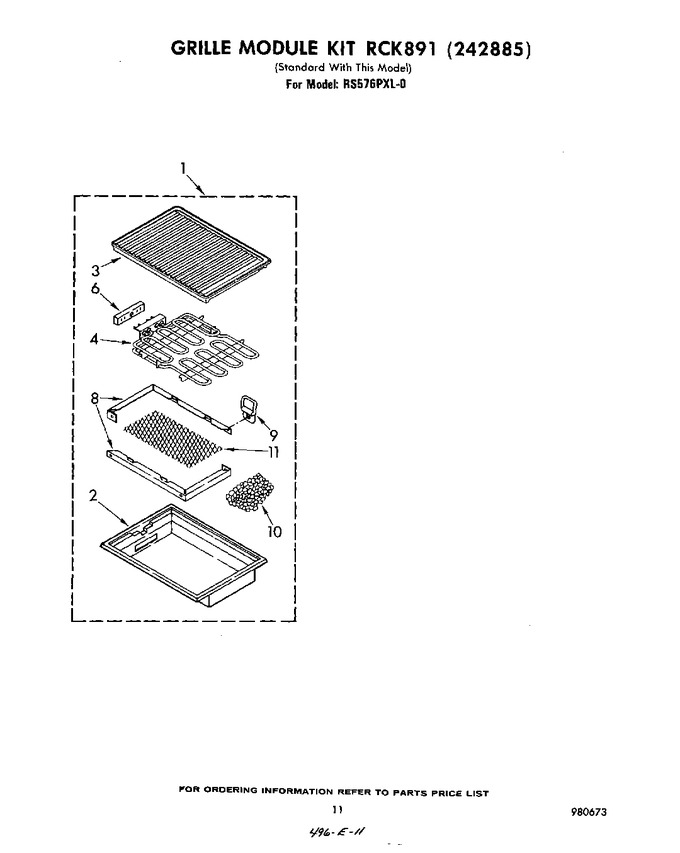

Diagram for RS576PXL0
