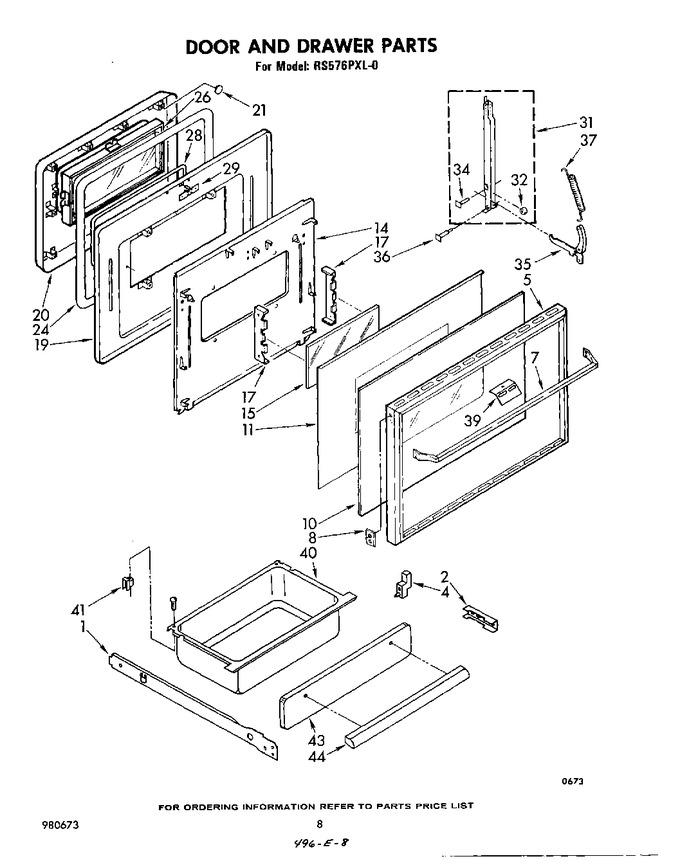

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	877685		Rail, Drawer (right Side)		Appelez-nous	-
1	681151		Rail, Drawer (screw, 10-24 X 1/2 (2))		Appelez-nous	-
1	877686		Rail, Drawer (left Side)		Appelez-nous	-
2	877727		Spacer, Drawer Rail (2)		Appelez-nous	-
4	834649		Screw, 10-24 X 7/8 (2)		Appelez-nous	-
4	868127		Guide, Drawer Front (2)		Appelez-nous	-
5	868430		Screw, 10-24 X 1/2 (5)		Appelez-nous	-
5	868494		Frame, Oven Door		Appelez-nous	-
7	877537		Handle, Door		Appelez-nous	-
8	866259		Trim, Frame		Appelez-nous	-
8	866155		Screw, 6-32 X 3/8 (4)		Appelez-nous	-
8	271482		Nut, Hex 6-32 (4)		Appelez-nous	-
10	868199		Glass, Outer (black)		Appelez-nous	-
11	868200		Panel, Heat Reflector		Appelez-nous	-
14	877538		Panel, Airwash		Appelez-nous	-
14	340184		Screw   (Replaces: 877702)				$ 12.70
15	868502		Glass, Inner		Appelez-nous	-
17	681151		Screw, 10-24 X 1/2 (40)		Appelez-nous	-
17	868503		Retainer, Glass (2)		Appelez-nous	-
19	877701		Liner, Oven Door		Appelez-nous	-
19	681151		Screw, 10-24 X 1/2 (9)		Appelez-nous	-
20	877540		Baffle		Appelez-nous	-
21	142001		Button, Plug 3/16		Appelez-nous	-
24	877590		Seal, Oven Door		Appelez-nous	-
26	877505		Window		Appelez-nous	-
28	877506		Seal, Window		Appelez-nous	-
28	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
29	877507		Strike		Appelez-nous	-
29	241422		Washer (2)		Appelez-nous	-
29	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
31	865972		Channel, Hinge (2)		Appelez-nous	-
31	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
32	834471		Roller,\ Door\ Stop (2)		Appelez-nous	-
32	241422		Washer (2)		Appelez-nous	-
34	241423		Rivet, Square Head (2)		Appelez-nous	-
35	865640		Arm Assembly (2)		Appelez-nous	-
36	241334		Pin, Hinge (2)		Appelez-nous	-
37	241312		Spring, Door (2)		Appelez-nous	-
39	877715		Bracket, Frame		Appelez-nous	-
40	877716		Drawer		Appelez-nous	-
40	441256		Nut, Hex 10-24		Appelez-nous	-
41	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
41	877717		Guide, Drawer (rear) (2)		Appelez-nous	-
43	877734		Panel, Drawer Black		Appelez-nous	-
44	868585		Screw, 10-24 X 3/8 (5)		Appelez-nous	-
44	877718		Handle, Drawer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
