Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2177986 Glass (3) Special Order $ 90.50

2 WP2196483 Stud Assembly   (Replaces: 2196483) Special Order $ 9.78

3 W10508993 Cover, Crisper   (Replaces: 2209698) Special Order $ 275.27

4 WP3400806 Screw   (Replaces: 8281158) Special Order $ 7.29

5 W10864399 Glass, Cover   (Replaces: 2174150) Special Order $ 208.83

6 W10864399 Glass, Cover   (Replaces: 2179259) Special Order $ 208.83

7 W11223328 Stud Assembly   (Replaces: 2196485) In-Stock Immediately $ 13.29

8 W10508993 Cover, Meat Pan   (Replaces: 2311726) Special Order $ 275.27

9 2304542 Shelf Assembly, Cantilever (3) Appelez-nous -
10 WP2188661 Crisper Pan   (Replaces: 2188661) In-Stock Immediately $ 176.82

11 1125594 Retainer (3) Appelez-nous -
12 WP3-24004-109 Screw   (Replaces: 3400894) Special Order $ 8.23

13 WP2188664 Meat Pan   (Replaces: 2188665) In-Stock Immediately $ 83.43

14 2179350 Deflector Special Order $ 77.30


    View Diagram in Separate Window     Print Icon   Print Part List

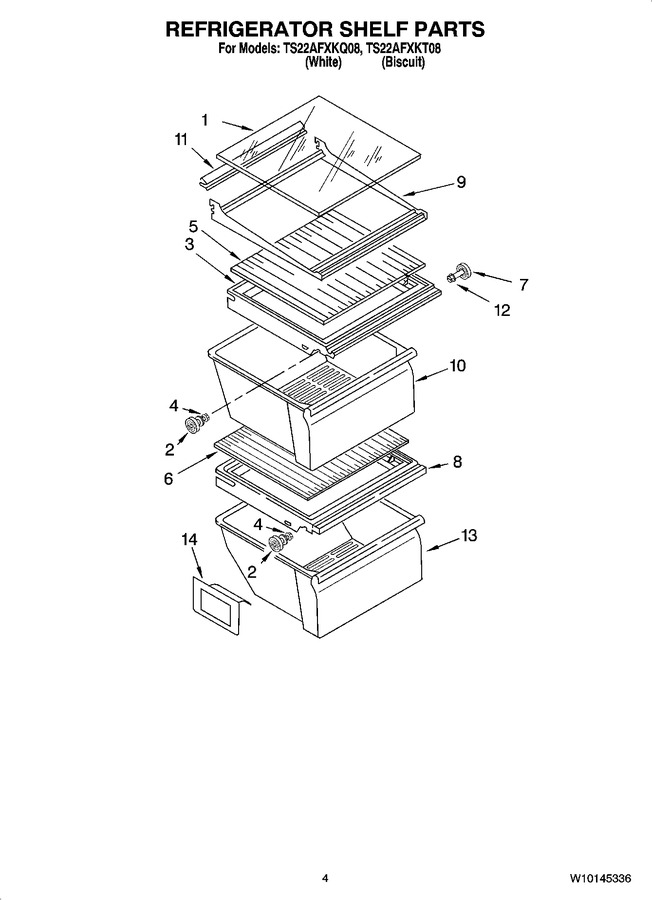

Diagram for TS22AFXKQ08
