SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Air Flow Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts

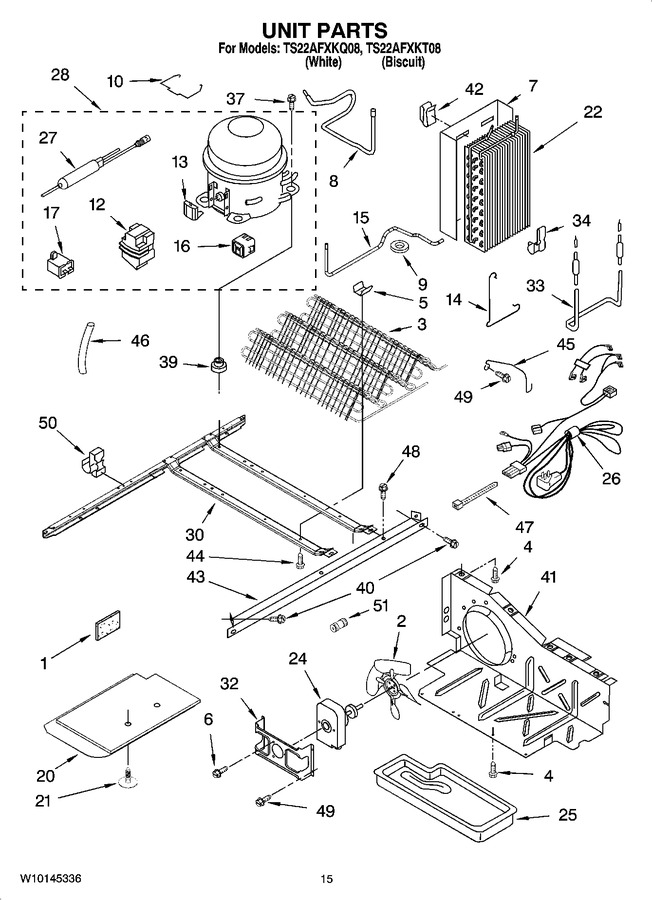

10 - Unit Parts


11 - Icemaker Parts


12 - Control Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Insulation, Sound Dampening   (Replaces: 2169104)			Immediately	$ 13.29
2	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 22.67
3	2324712		Condenser Assembly (also Order 9)   (Replaces: W10121487)				$ 291.11
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 17.44
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.09
7	2217195		Heat Shield And Drain Pan		Appelez-nous	-
8	2220642		Tube Suction				$ 209.40
9	W10132427		Bushing, Compressor		Appelez-nous	-
10	2212996		Strap   (Replaces: 2255113)				$ 11.45
12	WP2162358		Cover (service Compressor Only)   (Replaces: 4387731)				$ 85.76
13	4387535		Overload (service Compressor Only- Includes Relay)   (Replaces: 4387767)				$ 171.95
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	2261599		Tube, Condenser To Heat Loop				$ 219.30
16	WP2188831		Start-device, Combination (start Relay And Overload) For Production Compressor Only   (Replaces: 2188831)				$ 167.72
17	WP4387764		Capacitor (service)   (Replaces: 4387764)				$ 167.30
17	WP65889-4		Capacitor (production)   (Replaces: 2252799)			Immediately	$ 62.10
20	W11115203		Unit Cover, Bottom   (Replaces: 2304898)				$ 489.43
21	489396		Clip				$ 10.13
22	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 321.16
24	W10124096		Motor, Fan   (Replaces: 2188727)			Immediately	$ 146.83
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 142.34
26	2187510		Harness, Wire		Appelez-nous	-
27	W10843121		Drier (production)   (Replaces: 2319825)			Immediately	$ 51.42
27	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 27.70
28	W10355489		Compressor (includes Items 12, 13, 17 & 27)   (Replaces: W10120462)				$ 610.65
30	2304903		Frame, Unit Mounting				$ 220.21
32	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 11.64
33	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 110.93
34	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.01
39	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.01
39	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.57
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 91.08
42	2155547		Clip, Heat		Appelez-nous	-
43	2149718		Unit Mounting Rail		Appelez-nous	-
44	W11544659		Screw   (Replaces: 8281232)				$ 12.92
45	2186496		Guard, Fan		Appelez-nous	-
46	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
47	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.47
48	WP489427		Screw   (Replaces: 489427)				$ 7.06
49	WP489478		Screw   (Replaces: 489478)				$ 7.36
50	2208280		Clip, Wire & Tube		Appelez-nous	-
51	978028		Valve, Access (1/2)		Appelez-nous	-
51	978029		Valve Access (5/8``)				$ 93.85
51	978030		Valve, Access (3/4``)				$ 123.53
51	876764		Valve, Access(3/16``)			Immediately	$ 86.33
51	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
51	WPW10334458		Connector, Water Tube   (Replaces: 2320322)				$ 20.40
51	978026		Valve, Access (5/16``)			Immediately	$ 121.04
51	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79

    View Diagram in Separate Window       Print Part List
