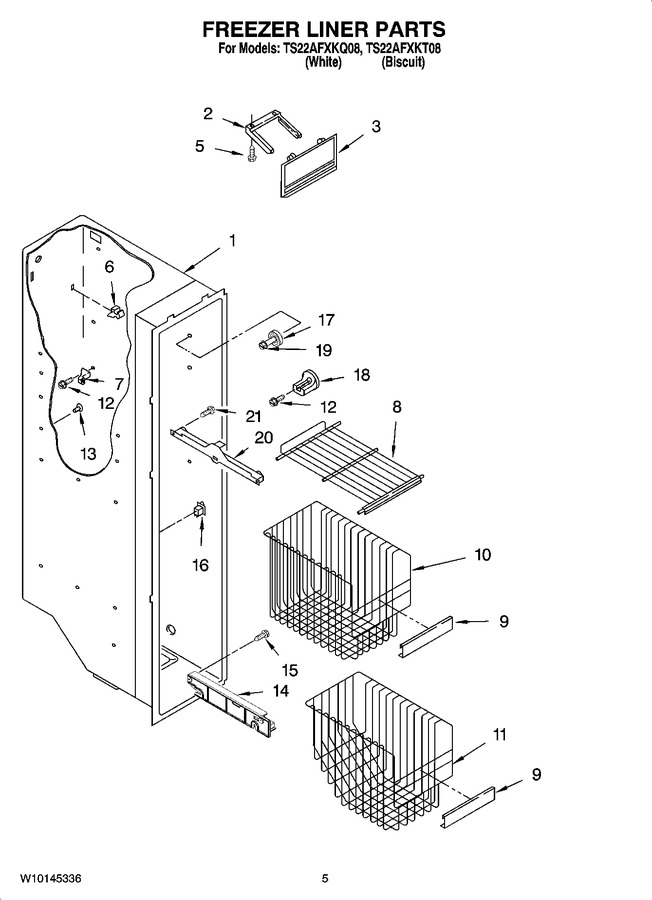

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 1115380 | Slide, Ice Door |
|
- | |||||
| 3 | 2171712 | Door, Ice Compartment |
|
$ 62.92 | |||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 6 | 2215823 | Clip, Air Duct (2) (Replaces: 842534) |
|
$ 9.85 | |||||
| 7 | 2196206 | Support, Stud (4) |
|
- | |||||
| 8 | WP2174249K | Shelf (2) (Replaces: 2174249K) |
|
$ 199.58 | |||||
| 9 | 2195904K | Trim, Basket |
|
- | |||||
| 10 | 2301192 | Basket, Tall |
|
- | |||||
| 11 | 2301193 | Basket, Slope |
|
- | |||||
| 12 | W10142289 | Screw (Replaces: 3400893) |
|
$ 8.65 | |||||
| 13 | 2176134 | Grommet (4) |
|
$ 5.83 | |||||
| 14 | 2261449 | Track, Basket (right Side) (2) |
|
$ 46.07 | |||||
| 14 | 2261448 | Track, Basket (left Side) (2) |
|
$ 46.07 | |||||
| 15 | W10759522 | Screw (Replaces: W10004810) |
|
$ 7.42 | |||||
| 16 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 36.08 | |||||
| 17 | WP2196483 | Stud Assembly (Replaces: 2196483) |
|
$ 9.78 | |||||
| 18 | 2196207 | Stud, Rear |
|
$ 7.61 | |||||
| 19 | WP3400806 | Screw (Replaces: 8281158) |
|
$ 7.29 | |||||
| 20 | W10845585 | Slide, Ice Container (left Side) (Replaces: 1119237) |
|
$ 125.47 | |||||
| 20 | W10845583 | Slide, Ice Container (right Side) (Replaces: 1119293) |
|
$ 117.11 | |||||
| 21 | 718257 | Screw (Replaces: 489100) |
|
- |
