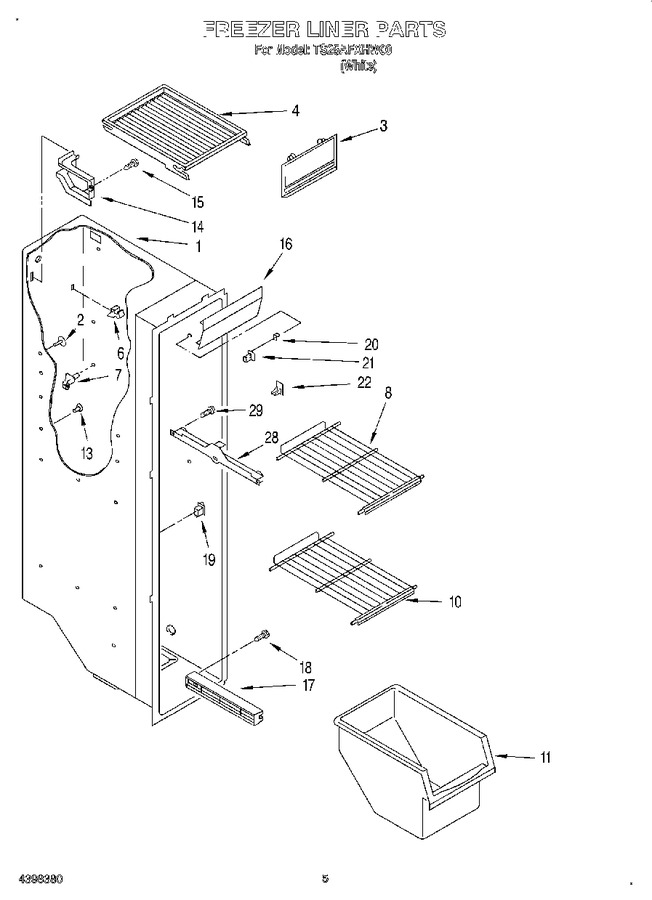

04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.23
3	WP2171713		Door, Ice Compartment   (Replaces: 2171713)				$ 82.47
4	2171714		Shelf, Top Compartment		Appelez-nous	-
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 9.85
7	1115317		Support, Stud (4)		Appelez-nous	-
8	WP2174267		Shelf   (Replaces: 2174267)				$ 84.02
10	2174268		Shelf (2)				$ 38.12
11	WP2182971		Bin, Freezer   (Replaces: 2182971)				$ 132.50
13	2176134		Grommet (4)				$ 5.83
14	2155572		Cover, Wiring		Appelez-nous	-
15	W11233072		Screw   (Replaces: 489355)			Immediately	$ 13.25
16	2171705		Lens, Light				$ 94.68
17	2181759		Shelf Track (left Side (2))		Appelez-nous	-
17	2181760		Shelf Track (right Side (2))		Appelez-nous	-
18	W10759522		Screw   (Replaces: 486298)				$ 7.42
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 36.08
20	946355		Stud		Appelez-nous	-
21	946356		Stud, R.s. Front		Appelez-nous	-
22	1106982		Stud, L.s. Rear		Appelez-nous	-
28	W10845585		Slide, Ice Container (left Side)   (Replaces: 1119237)				$ 125.47
28	W10845583		Slide, Ice Container (right Side)   (Replaces: 1119293)				$ 117.11
29	718257		Screw   (Replaces: 489100)		Appelez-nous	-
