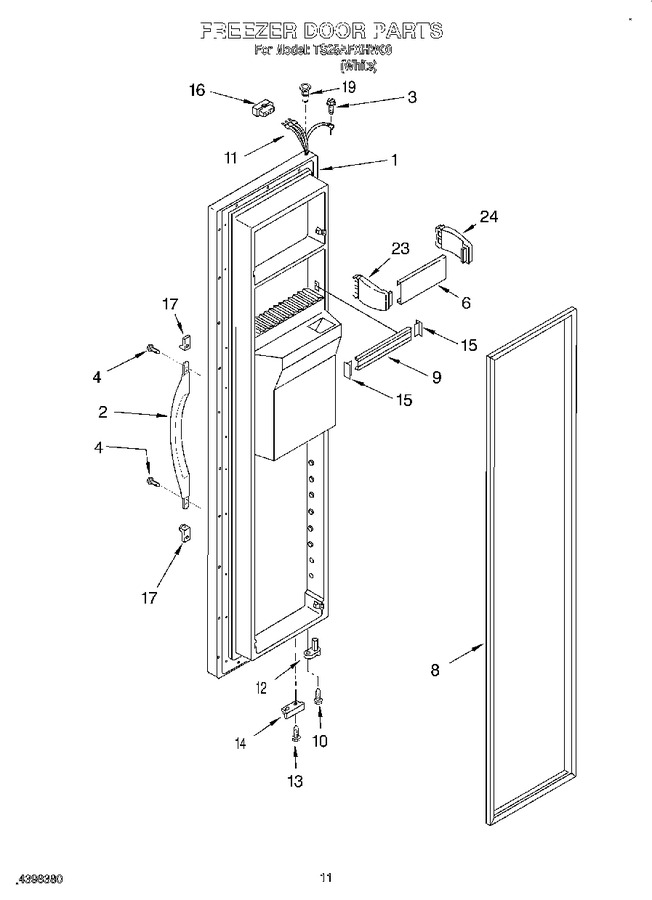

08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2204316W		Freezer Door (includes Item No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2186649W		Handle, Center (white)				$ 70.49
3	WP489128		Screw   (Replaces: 488500)				$ 10.26
4	WP489491		Screw   (Replaces: 489491)				$ 6.57
6	2195927		Trivet, Shelf (4)		Appelez-nous	-
8	2159080		Door Gasket, Magnetic (service) (black)				$ 293.32
8	2159074		Door Gasket, Magnetic (service) (mist Beige)				$ 293.13
9	WPW10307490		Trim, Door Shelf   (Replaces: 2195931)			Immediately	$ 21.84
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
11	2183713		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.80
13	WP489483		Screw   (Replaces: 489420)				$ 10.27
14	2195950		Bracket, Door Stop (chrome)				$ 5.84
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
16	WP2154473		Connector   (Replaces: 2154473)				$ 22.35
17	WP2193353W		Handle, Trim   (Replaces: 2193353W)				$ 7.67
19	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.34
21	WP3400852		Screw   (Replaces: 3400852)				$ 9.30
23	2195917		Endcap (left)		Appelez-nous	-
24	WP2195916K		End Cap (right)   (Replaces: 2195916)			Immediately	$ 11.86
