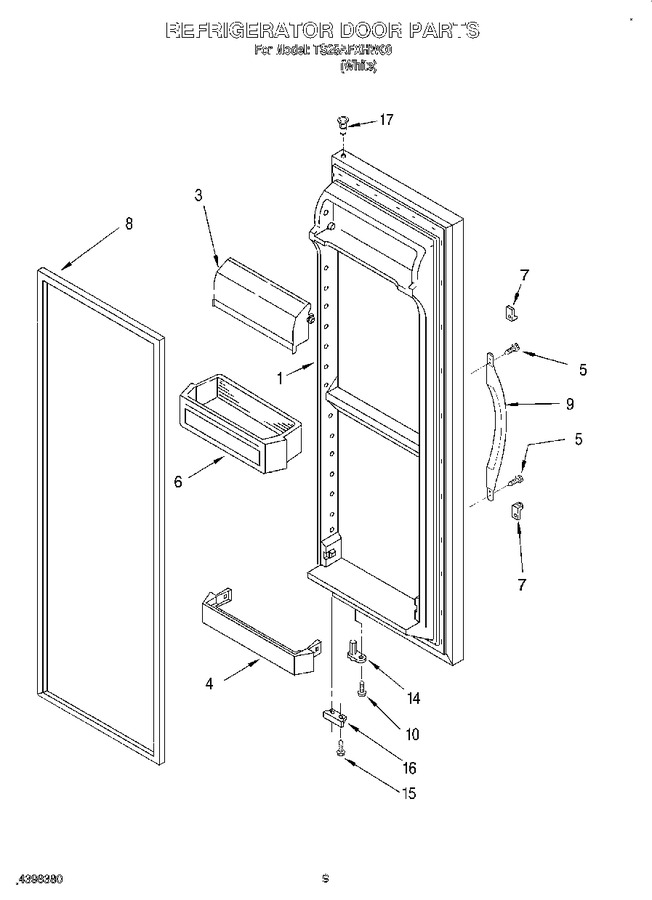

07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2204313W		Refrigerator Door (includes Item No.8) (white)		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 80.48
4	WP2177962K		Trivet, Shelf   (Replaces: 2177962)				$ 76.63
5	WP489491		Screw   (Replaces: 489491)				$ 6.57
6	WP2187172		Shelf Bin (3)   (Replaces: 2187172)			Immediately	$ 40.58
7	WP2193353W		Handle, Trim   (Replaces: 2193353W)				$ 7.67
8	2159075		Door Gasket, Magnetic (service) (mist Beige)			Immediately	$ 299.70
9	2186649W		Handle, Center (white)				$ 70.49
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
12	2195496		Divider, Bin		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.80
15	WP489483		Screw   (Replaces: 489420)				$ 10.27
16	2195952		Bracket, Door Stop (black)		Appelez-nous	-
16	2195950		Bracket, Door Stop (chrome)				$ 5.84
17	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 7.34
20	WP3400852		Screw   (Replaces: 3400852)				$ 9.30
