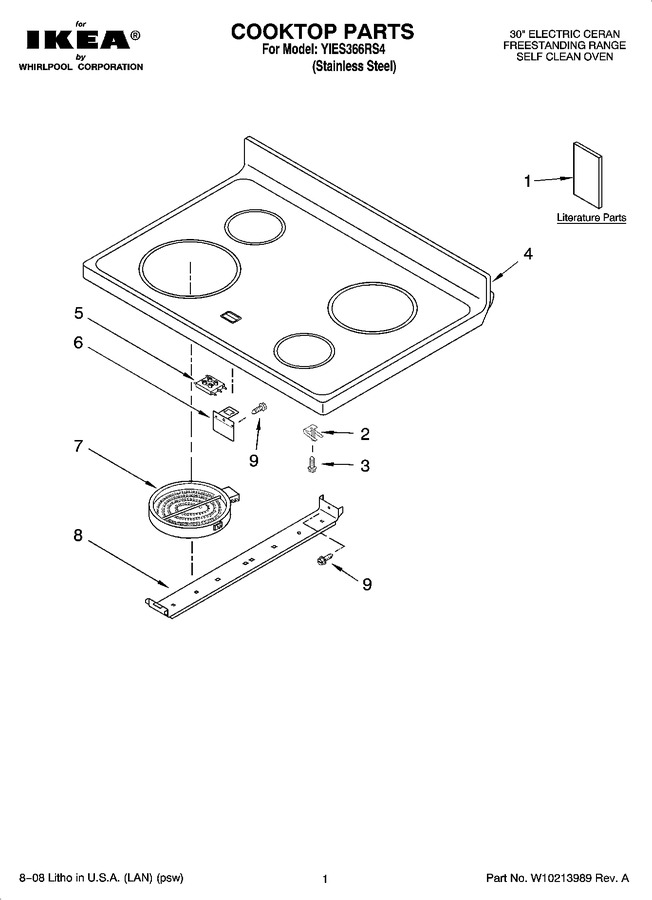

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10141167 | Instructions, Installation |
|
- | |||||
| 1 | 9757142 | Template,anti-tip (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | W10162209 | Owners Manual |
|
- | |||||
| 1 | W10046560 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | W10035930 | Spring, Locator |
|
- | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 6.80 | |||||
| 4 | W10134930 | Cooktop |
|
- | |||||
| 5 | 8523740 | Light, Indicator (hot Surface) |
|
- | |||||
| 6 | 8524063 | Bracket, Ind Light |
|
- | |||||
| 7 | WPW10242957 | Element, Surface (2000w - Lf & Rr) (Replaces: 8523695) |
|
$ 324.59 | |||||
| 7 | W10823699 | Element, Surface (1500w - Lr & Rf) (Replaces: 8523697) |
|
Immediately | $ 152.96 | ||||
| 8 | 3196454 | Bracket, Element |
|
- | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 |
