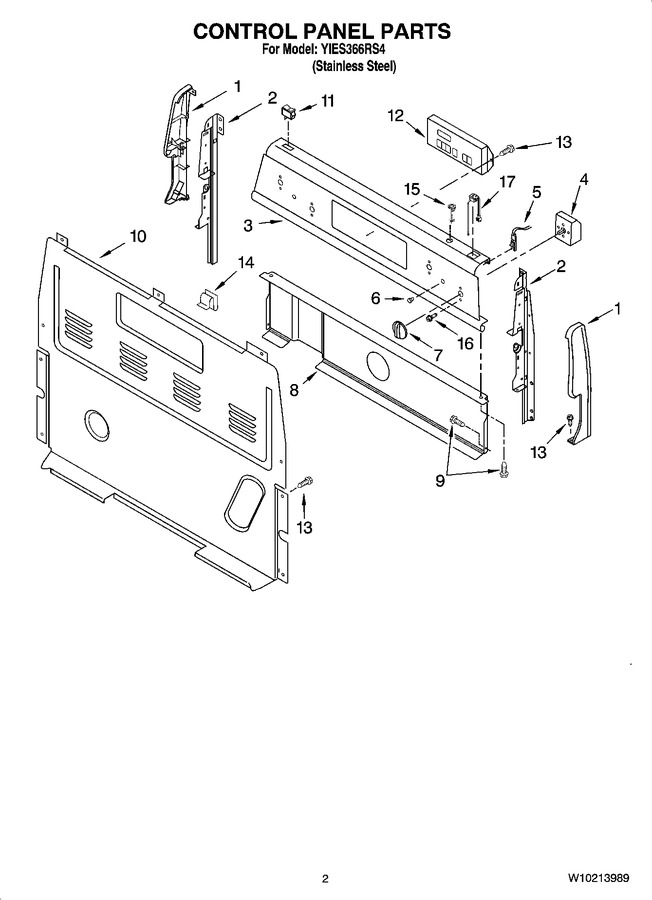

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186188 | Endcap (black Left Hand) |
|
- | |||||
| 1 | 3186189 | Endcap (black Right Hand) |
|
- | |||||
| 2 | 8523408 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 8523409 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 9760313 | Panel, Backguard |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (lr & Rf) (Replaces: 3148953) |
|
Immediately | $ 49.03 | ||||
| 4 | WP3148952 | Switch, Infinite (lf & Rr) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 5 | WP8523265 | Light, Indicator Surface Unit (2) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Light (2) (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | 9758786 | Knob, Infinite (4) (Replaces: 9758753) |
|
$ 99.66 | |||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 9 | W10276642 | Screw (Replaces: 4449746) |
|
$ 5.77 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | WP4314961 | Switch, Rocker (Replaces: 3148564) |
|
$ 84.56 | |||||
| 12 | 6610466 | Control, Range |
|
$ 369.37 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | WP8273564 | Clip - Cover (Replaces: 8273564) |
|
$ 11.39 | |||||
| 15 | WP9757602 | Breaker - Circuit (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 17 | 9758886 | Receptacle |
|
$ 8.00 |
