01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts

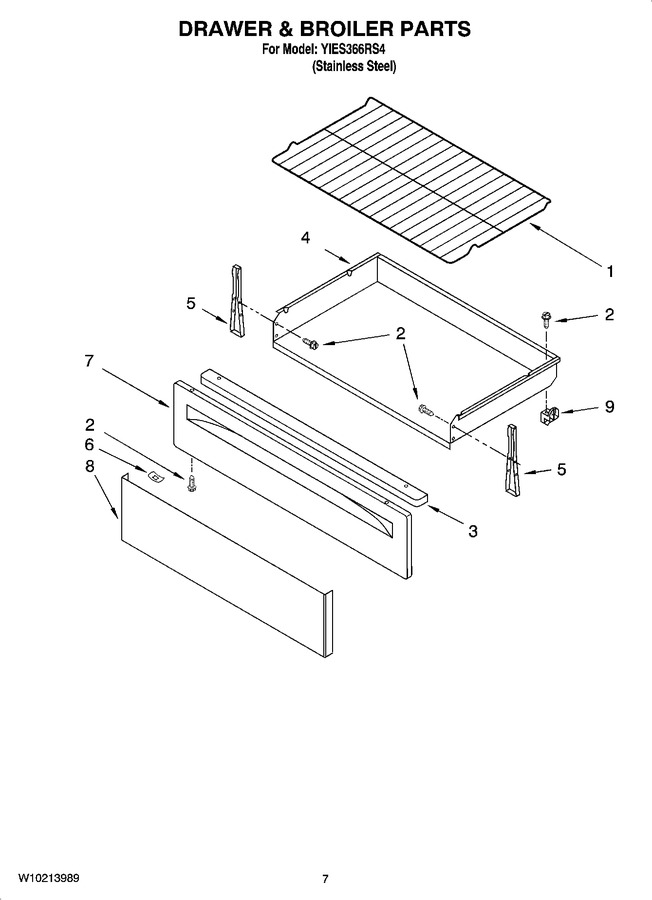

05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: W10179196) |
|
Immediately | $ 52.19 | ||||
| 2 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.36 | ||||
| 3 | 9757237 | Handle, Drawer |
|
- | |||||
| 4 | 9761031 | Drawer, Storage |
|
- | |||||
| 5 | W10838990 | Bracket, Drawer(2) (Replaces: 9758200) |
|
Immediately | $ 80.06 | ||||
| 6 | WP9781235 | Clip, Speed (Replaces: 9781235) |
|
$ 11.30 | |||||
| 7 | W11230488 | Panel, Drawer Frnt (Replaces: 8053341) |
|
$ 191.20 | |||||
| 8 | W10133363 | Panel, Stainless |
|
- | |||||
| 9 | WP8053334 | Glide, Drawer (2) (Replaces: 8053334) |
|
Immediately | $ 7.06 | ||||
| 9756779 | Retainer - Strain Relief |
|
- | ||||||
| 9758783 | Harness, Wire (sensor/dr Switch) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 78.50 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 52.37 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 52.37 | |||||
| 313660 | Clip, Ground Wire |
|
- | ||||||
| 511873 | Paint, Touch-up (1/2oz.) (white (porcelain (2 Oz.)) |
|
$ 46.58 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 53.90 | ||||||
| 8524132 | Shield, Wiring (door Switch) |
|
- | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 3191048 | Cleaner, Glass |
|
- | ||||||
| 4396923 | Pan - Broiler |
|
Immediately | $ 54.64 | |||||
| W11839019 | Anti-tip Kit (Replaces: W10017440) |
|
Immediately | $ 25.69 | |||||
| 9761468 | Harness, Wire (cooktop Left) |
|
- | ||||||
| 9761458 | Harness, Wire (cooktop Right) |
|
- | ||||||
| W10111697 | Harness, Wire (main) |
|
- | ||||||
| 3184020 | Wire, Ground (Replaces: 8523279) |
|
$ 78.23 | ||||||
| W11244557 | Screw (Replaces: 3196173) |
|
$ 12.86 | ||||||
| 8524114 | Relief, Strain |
|
- | ||||||
| WP3196154 | Screw, Ground (Replaces: 3196154) |
|
$ 7.60 | ||||||
| 9756350 | Cord - Power 240v |
|
$ 60.82 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 |
