View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

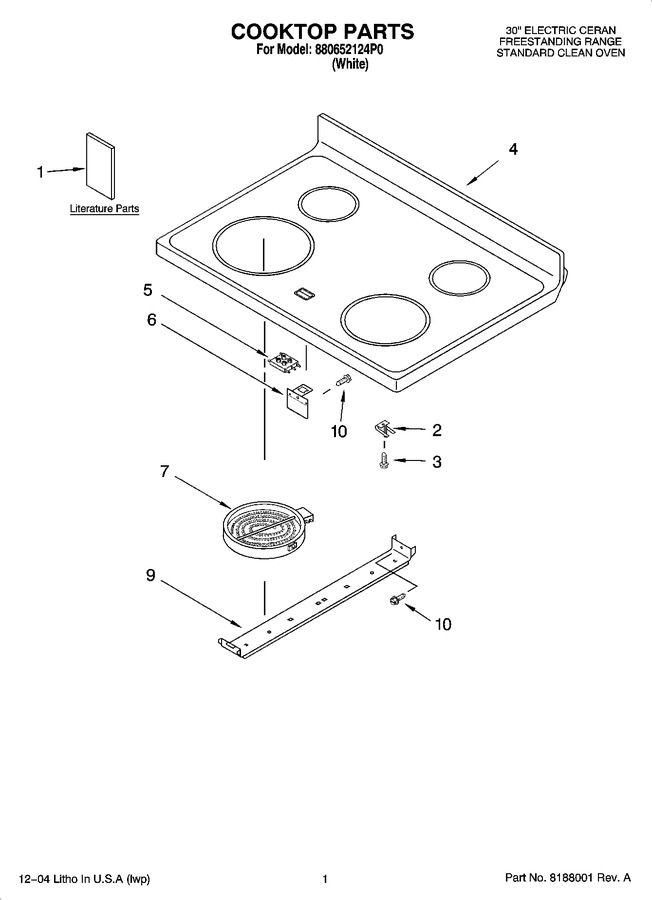

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9758020 | Use & Care Guide |
|
- | |||||
| 1 | 9758007 | Tech Sheet |
|
- | |||||
| 1 | 9756848 | Installation Instructions Template, Anti-tip |
|
- | |||||
| 1 | 9756849 | English/french |
|
- | |||||
| 1 | 8523048 | English/spanish |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 6.80 | |||||
| 4 | 9758732 | Cooktop |
|
- | |||||
| 5 | 8523739 | Light, Indicator (hot Surface) |
|
$ 120.71 | |||||
| 6 | 8523741 | Bracket, Ind Light |
|
- | |||||
| 7 | W10823711 | Element, Surface (1200 W - Rr) (Replaces: 8523698) |
|
Immediately | $ 227.75 | ||||
| 7 | W10823692 | Element, Surface (2400/1000 W - Rf) (Replaces: 8523693) |
|
Immediately | $ 253.60 | ||||
| 9 | 8272791 | Bracket, Element |
|
- | |||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 |
