01 - Cooktop Parts

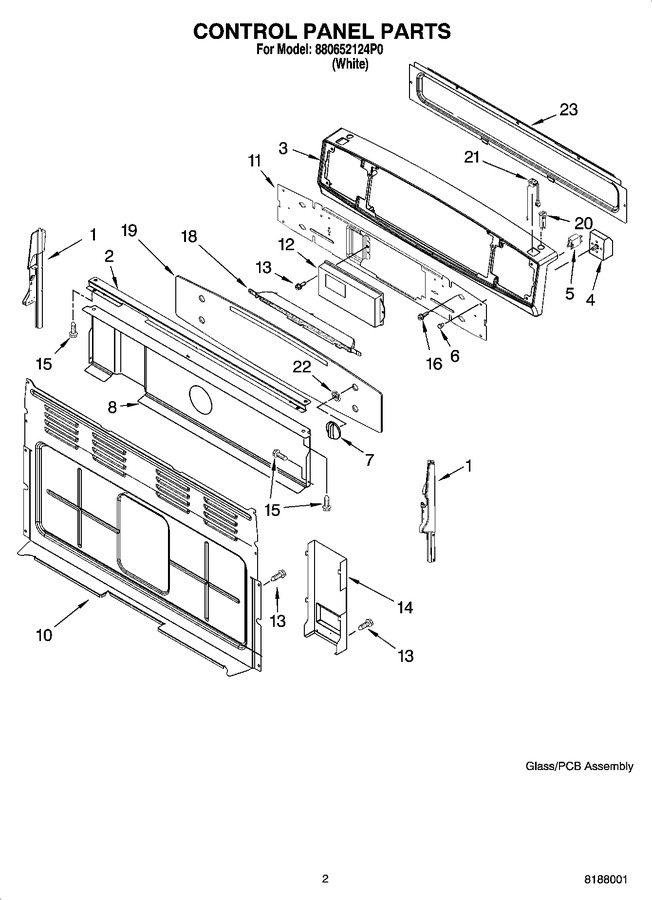

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (left Hand) (Replaces: 9757631) |
|
$ 38.21 | |||||
| 1 | W11219370 | Endcap (right Hand) (Replaces: 9757632) |
|
$ 54.75 | |||||
| 2 | 9756364 | Bracket, Console |
|
- | |||||
| 3 | 9758500 | Panel, Backguard |
|
- | |||||
| 4 | 9757478 | Switch, Infinite (lf & Rf) |
|
$ 170.43 | |||||
| 4 | W11233068 | Switch, Infinite (lr & Rr) (Replaces: 9757479) |
|
Immediately | $ 85.90 | ||||
| 5 | 9759951 | Light, Indicator |
|
- | |||||
| 6 | 9759952 | Lens, Light |
|
- | |||||
| 7 | 9755418FW | Knob, Infinite (4) |
|
- | |||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 10 | 9756999 | Cover, Rear |
|
- | |||||
| 11 | 9756363 | Bracket, Control |
|
- | |||||
| 12 | 9757504 | Control, Range |
|
$ 326.51 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | WPW10326122 | Cover, Box (Replaces: 9758283) |
|
$ 125.64 | |||||
| 15 | 3196166 | Screw |
|
$ 6.62 | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 18 | 9757359 | Module, Lighting |
|
- | |||||
| 19 | 9758145 | Glass/pcb Assembly |
|
$ 207.11 | |||||
| 20 | WP9757601 | Breaker, 15amp (2) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 21 | W10849725 | Receptacle (2) (Replaces: 9758885) |
|
Immediately | $ 100.00 | ||||
| 22 | 9756365 | Nut, Retainer |
|
- | |||||
| 23 | 9756366 | Cover, Rear (console) |
|
- |
