Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8522738 Rack, Oven (2) Special Order $ 62.46

2 WP3195996 Grill, Broiler   (Replaces: 3195996) Special Order $ 88.79

3 WP3196076 Pan, Broiler   (Replaces: 3196076) Special Order $ 297.32

4 8272605 Drawer, Storage Appelez-nous -
5 W10838990 Bracket, Drawer(2)   (Replaces: 9758200) In-Stock Immediately $ 80.06

6 WP3196814 Rivet, Push (2) (white)   (Replaces: 3196814) In-Stock Immediately $ 9.96

7 8272599 Panel, Drawer Front Appelez-nous -
8 8522669 Spacer, Guide Appelez-nous -
9 8274191 Rail, Drawer (right) Appelez-nous -
9 8274190 Rail, Drawer (left) Appelez-nous -
10 WP3400832 Screw   (Replaces: 3196168) In-Stock Immediately $ 7.36

11 814229 Roller   (Replaces: 9751138) In-Stock Immediately $ 63.42

12 WP487939 Nut   (Replaces: 487939) Special Order $ 7.76

13 8272439 Handle, Drawer Appelez-nous -
14 9756711 Heat Shield, Drawer Appelez-nous -
15 8272311 Liner, Drawer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

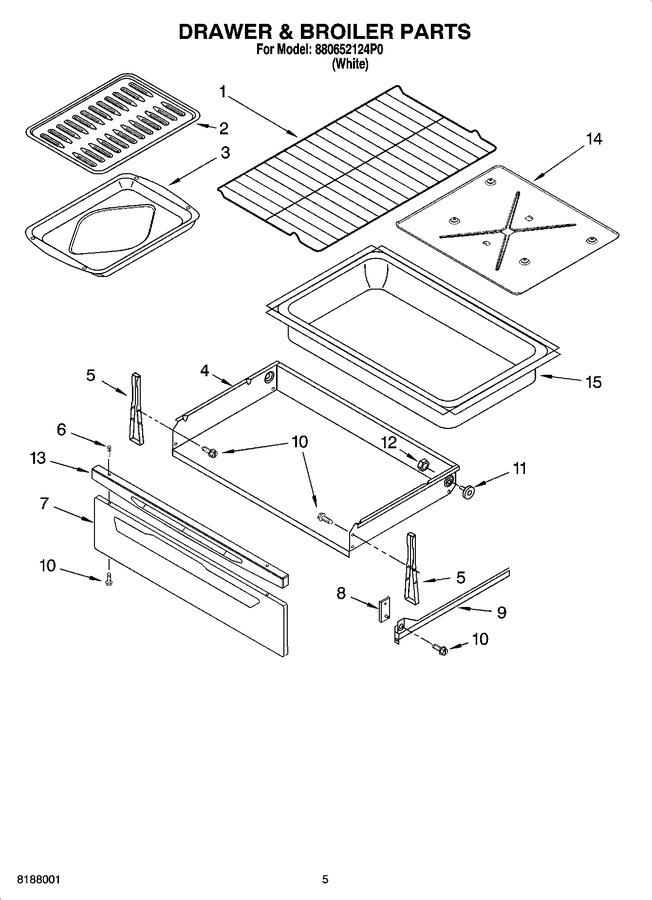

Diagram for 880652124P0
